SKU: CUC205-15

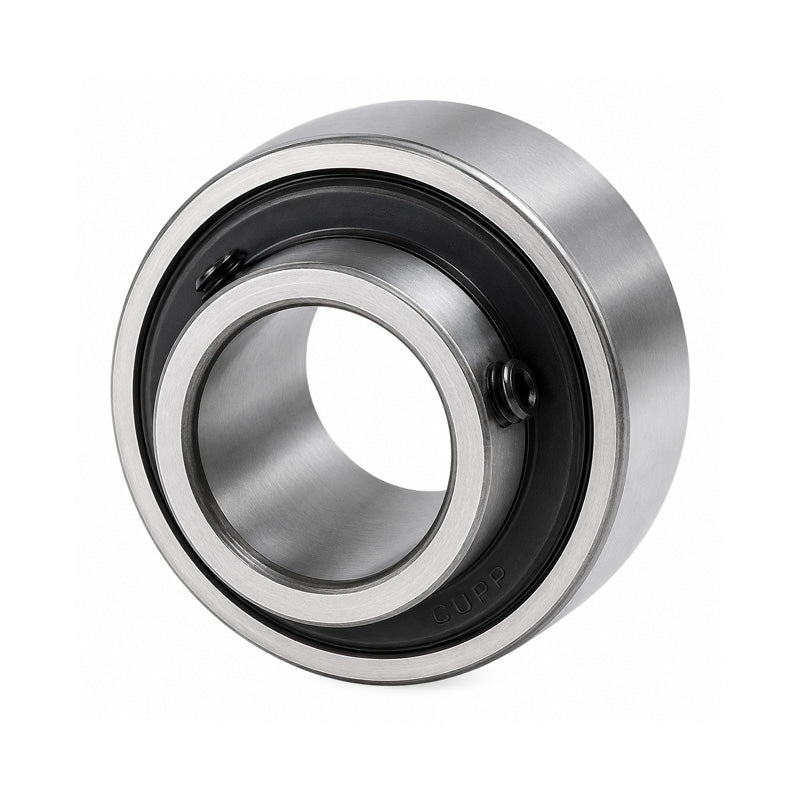

CUC205-15 Imperial Cylindrical Bearing Insert with 15/16 inch Bore 52mm Outside Dia
CUC205-15 Imperial Cylindrical Bearing Insert with 15/16 inch Bore 52mm Outside Dia
Equivalent to: UR205-15 RB205-15
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.21 kg |
