SKU: CUC207-22-SNR

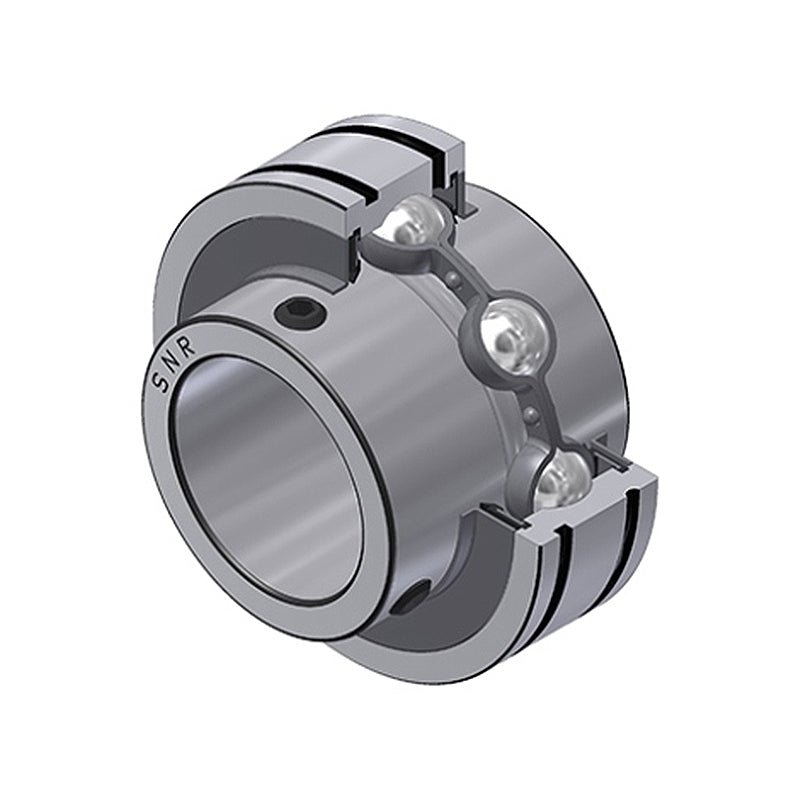

SNR CUC207-22 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Grub Screws - Allow 2-3 Days
SNR CUC207-22 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Grub Screws - Allow 2-3 Days
Regular price
$29.44
ex VAT
Regular price
Sale price
$29.44
ex VAT
In stock
Price Break
3+
$21.93
5+
$21.04
9+
$20.60
19+
$19.94
49+
$19.49
74+
$18.38
99+
$15.51
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 5/16-24UNF
- Inside Diameter:
- 34.925mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
- Width:
- 42.9mm
- Style:
- CUC
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| d | 34.925mm |
| D | 72mm |
| C | 20mm |
| B | 42.9mm |
| S | 17.5mm |
| a | 3.3mm |
| b | 1.9mm |
| N1 | 68.81mm |
| m | 6.5mm |
| C1 | 5mm |
| r min | 1.1mm |
| G | 5/16-24UNF |
| Wrench Size | 5/32 inch |
| Set screw torque | 8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 25.7kN |
| Static load rating C0 | 15.2kN |
| Weight | 0.5kg |
