SKU: CUC208

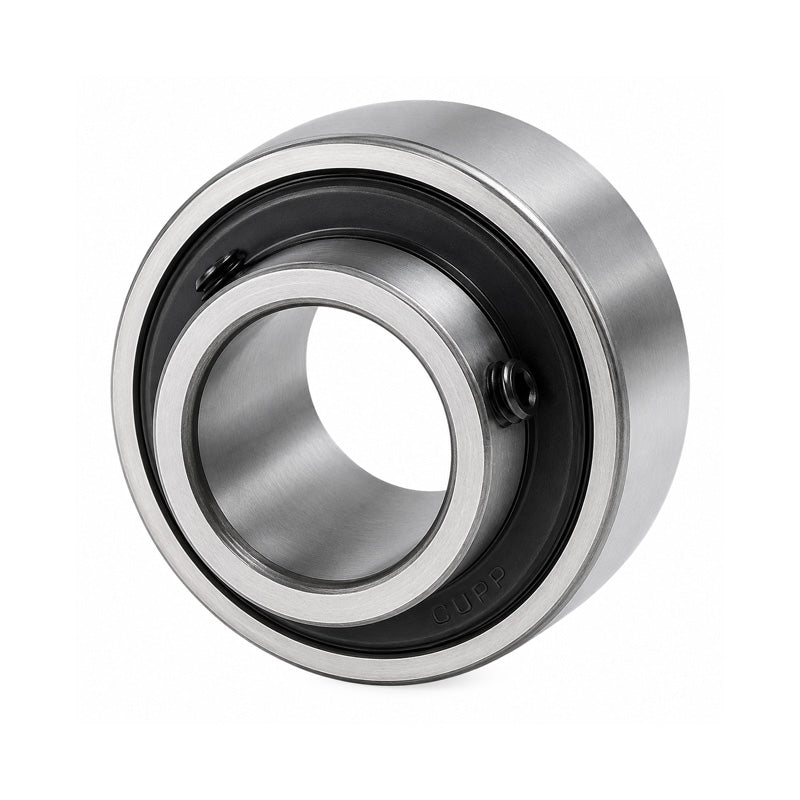

CUC208 Metric Cylindrical Bearing Insert with 40mm Bore 80mm Outside Dia - Allow 2-3 Days
CUC208 Metric Cylindrical Bearing Insert with 40mm Bore 80mm Outside Dia - Allow 2-3 Days
Regular price
$14.70
ex VAT
Regular price
Sale price
$14.70
ex VAT
Equivalent to: UR208 RB208
In stock
Price Break
3+
$10.95
4+
$10.51
9+
$10.29
19+
$9.95
49+
$9.73
99+
$9.18
499+
$7.74
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| N | 19mm |
| M | 30.2mm |
| G | 8mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 29500 N |
| Static Load | 18100 N |
| Weight | 0.64 kg |
