SKU: CUC209

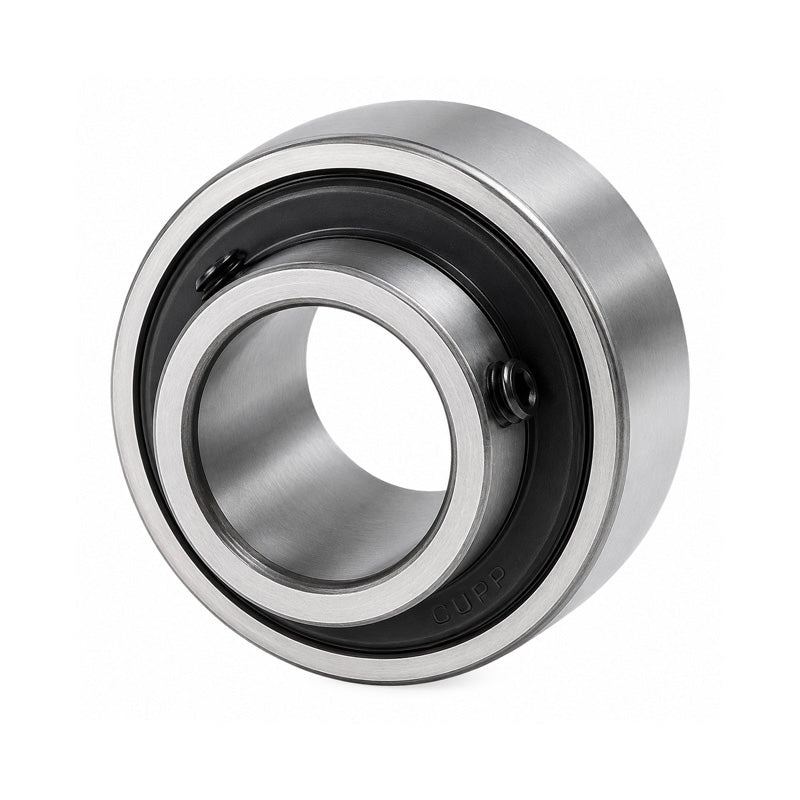

CUC209 Metric Cylindrical Bearing Insert with 45mm Bore 85mm Outside Dia - Allow 2-3 Days
CUC209 Metric Cylindrical Bearing Insert with 45mm Bore 85mm Outside Dia - Allow 2-3 Days
Regular price
$17.63
ex VAT
Regular price
Sale price
$17.63
ex VAT
Equivalent to: UR209 RB209
In stock
Price Break
3+
$13.14
4+
$12.61
9+
$12.34
19+
$11.94
49+
$11.68
99+
$11.01
499+
$9.29
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| N | 19mm |
| M | 30.2mm |
| G | 8mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 31600 N |
| Static Load | 20600 N |
| Weight | 0.68 kg |
