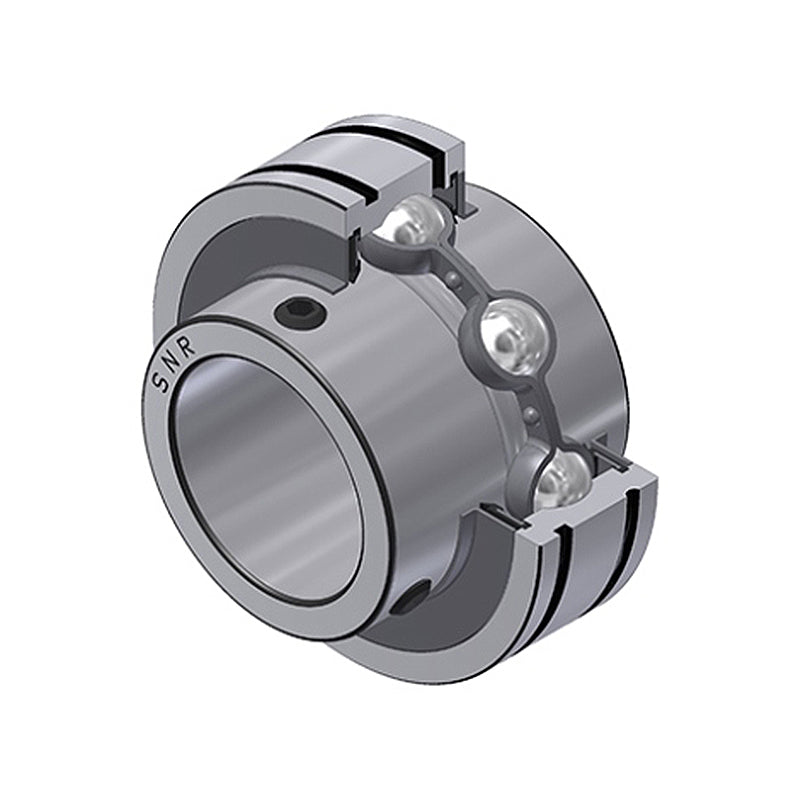

• SNR CUC209-28 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Grub Screws
  • SNR
1 2

SKU: CUC209-28-SNR

SNR CUC209-28 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Grub Screws

SNR CUC209-28 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Grub Screws
$35.01 ex VAT
$35.01 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.45
5+ $22.13
9+ $21.87
19+ $21.60
49+ $21.34
74+ $21.08
99+ $19.76
199+ $19.50
249+ $19.23
499+ $18.97
999+ $18.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Outside Diameter:
85mm
Width:
49.2mm
Style:
CUC
Technical
d 1-3/4 inch
d 44.45mm
D 85mm
C 22mm
B 49.2mm
S 19mm
a 3.5mm
b 1.9mm
N1 81.81mm
m 8mm
C1 5.1mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 31.9kN
Static load rating C0 20.8kN
Weight 0.7kg
