SKU: CUC211-32

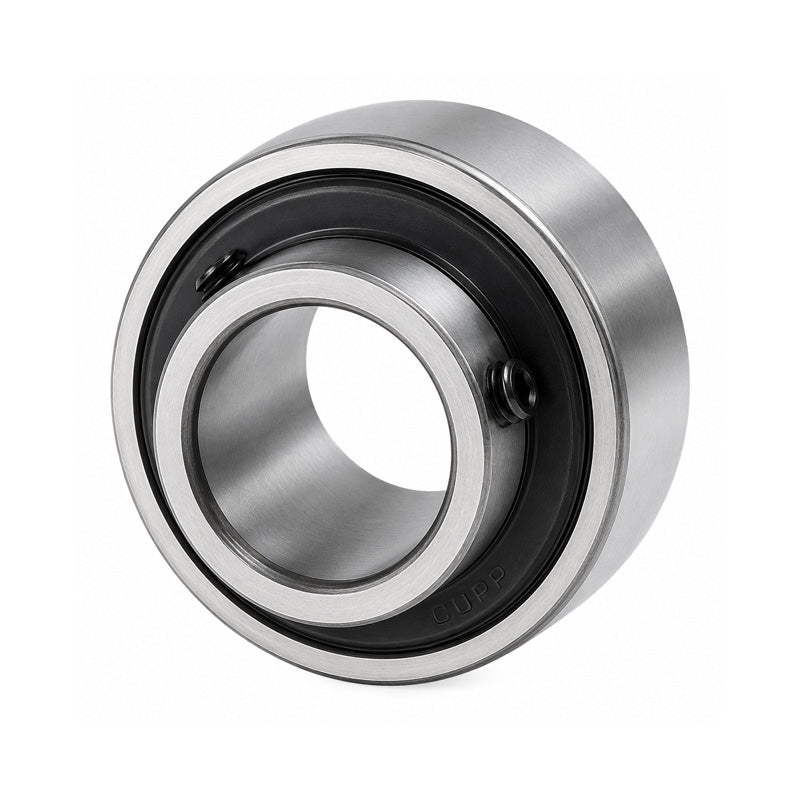

CUC211-32 Imperial Cylindrical Bearing Insert with 2 inch Bore 100mm Outside Dia - Allow 2-3 Days
CUC211-32 Imperial Cylindrical Bearing Insert with 2 inch Bore 100mm Outside Dia - Allow 2-3 Days
Regular price
$23.53
ex VAT
Regular price
Sale price
$23.53
ex VAT
Equivalent to: UR211-32 RB211-32
In stock
Price Break
3+
$17.53
4+
$16.82
9+
$16.47
19+
$15.94
49+
$15.58
99+
$14.70
499+
$12.40
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 (2) inch
- Outside Diameter:
- 100mm
Technical
Technical
| d | 2 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| N | 22.2mm |
| M | 33.4mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 43500 N |
| Static Load | 29200 N |
| Weight | 1.26 kg |
