SKU: CUC212

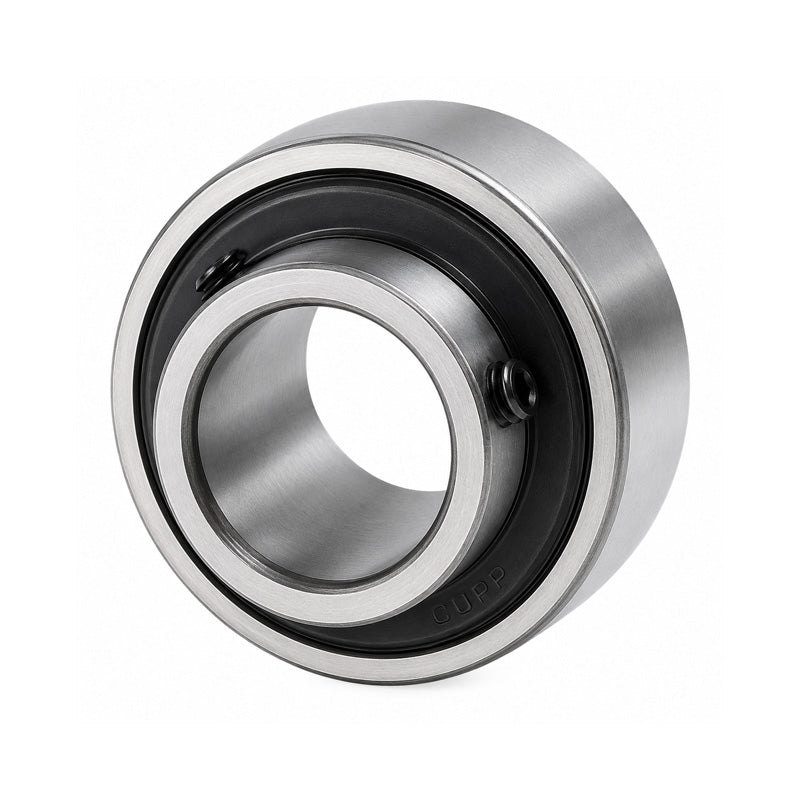

CUC212 Metric Cylindrical Bearing Insert with 60mm Bore 110mm Outside Dia
CUC212 Metric Cylindrical Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
$32.15
ex VAT
Regular price
Sale price
$32.15
ex VAT
Equivalent to: UR212 RB212
Low stock
Price Break
3+
$21.54
4+
$20.33
9+
$20.09
19+
$19.84
49+
$19.60
99+
$19.36
499+
$18.15
999+
$17.91
1999+
$17.67
2999+
$17.42
4999+
$16.94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| N | 25.4mm |
| M | 39.7mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 47700 N |
| Static Load | 32900 N |
| Weight | 1.54 kg |
