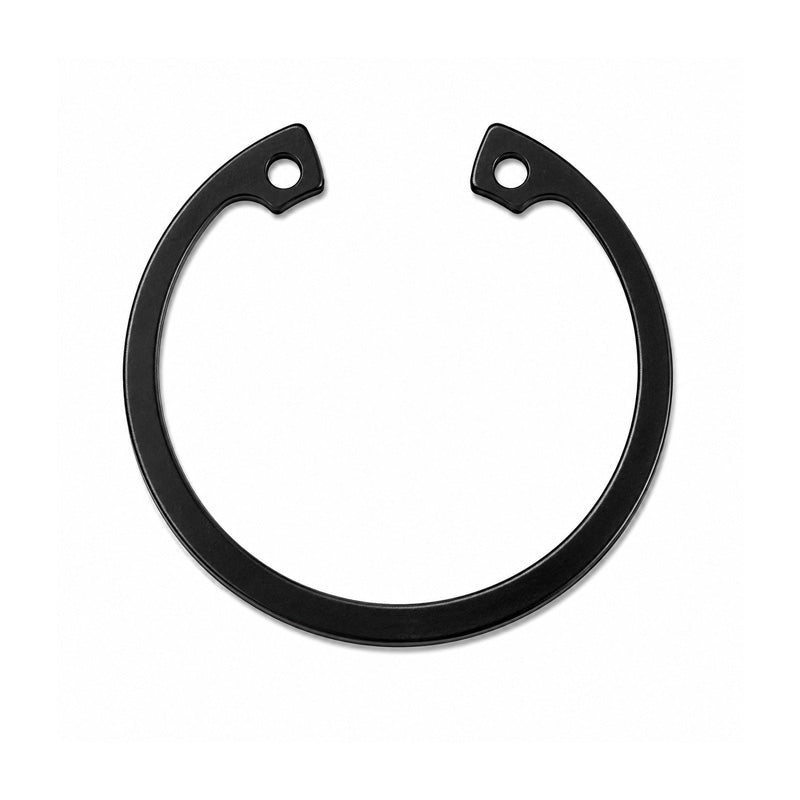

Internal Circlip for 52mm Bore Diameter Un-Sprung Diameter 56.2mm

Heavy Duty Internal Circlips: The most common form of axially fitted circlips for bores with grooves.
A Heavy Duty External Circlip is known for its larger thickness of that of a standard External DIN 471 Circlip, even though it does follow the same design. Having a greater thickness increases the strength of the Circlip significantly and is ideal where Heavy Duty applications are required. The circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
Benefits: Cost effective replacement, durable, removable.

Brand / Quality:

Simply Circlips - Economy Quality

Bore:

52mm

Outside Diameter:

56.2mm

Material:

Sprung Carbon Steel

Thickness:

2.50mm

Groove Diameter:

55mm
