SKU: D1300-205

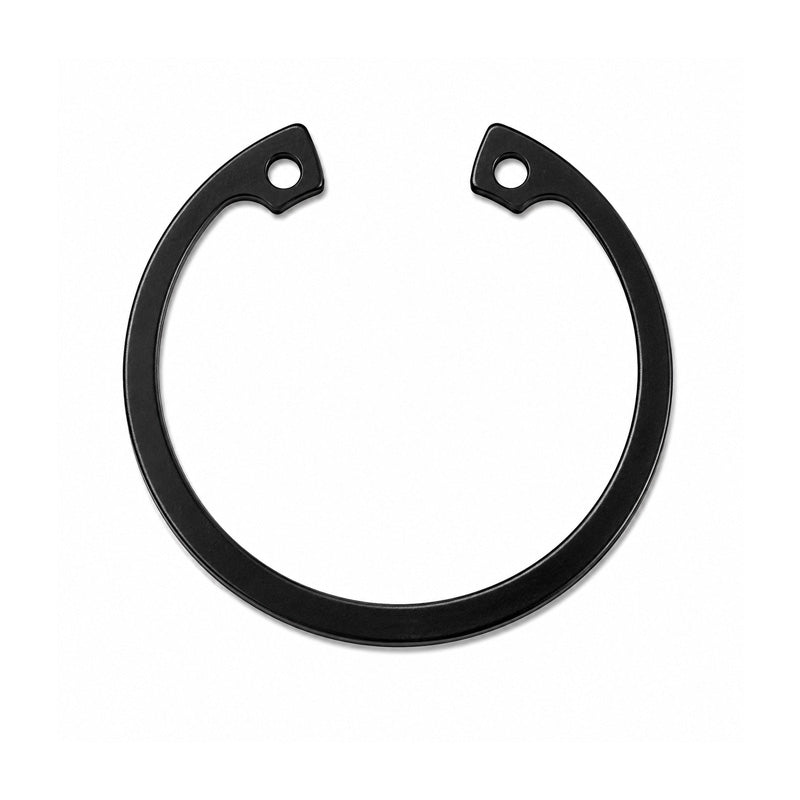

Internal Circlip for 205mm Bore Diameter Un-Sprung Diameter 217mm

Name: Internal Circlip for 205mm Bore Diameter Un-Sprung Diameter 217mm
Brand: Simply Circlips
SKU: D1300-205
Price: 8.80 USD
Availability: InStock

$8.80 ex VAT

Sale Sold out

Equivalent to: D1300-205

In stock

Price Break

5+ $6.55

10+ $6.29

20+ $6.16

50+ $5.96

100+ $5.83

500+ $5.49

1000+ $4.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Circlips - Economy Quality
Bore:: 205mm
Outside Diameter:: 217mm
Material:: Sprung Carbon Steel
Thickness:: 5mm
Groove Diameter:: 211mm

Technical

---	Clip Dimensions
Bore Size	205mm
s (ring thickness)	5mm
Thickness tolerance	-0.12mm
Unstressed diameter d3	217mm
Unstressed diameter tolerance	+1.70-0.72mm
Lug a	14.2mm
Beam b	14mm
d5	4mm
Weight	225 g
---	Groove Requirements
Groove diameter	211mm
Groove tolerance	0.72mm
Minimum groove width	5.15mm
Groove depth	3mm
