SKU: D1300-220

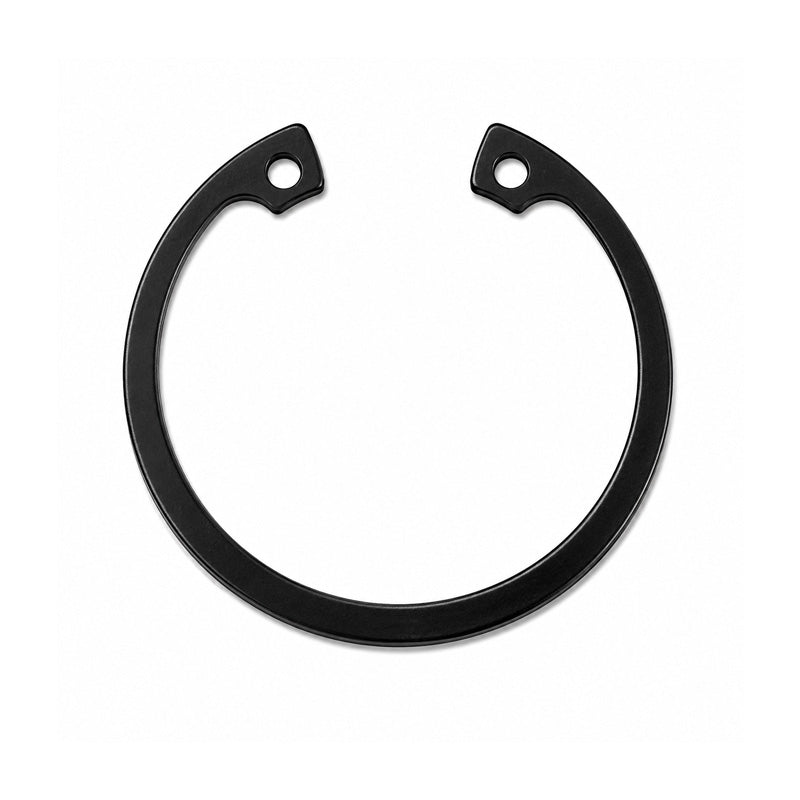

Internal Circlip for 220mm Bore Diameter Un-Sprung Diameter 232mm

Name: Internal Circlip for 220mm Bore Diameter Un-Sprung Diameter 232mm
Brand: Simply Circlips
SKU: D1300-220
Price: 17.62 USD
Availability: InStock

$17.62 ex VAT

Sale Sold out

Equivalent to: D1300-220

In stock

Price Break

5+ $13.13

10+ $12.60

20+ $12.33

50+ $11.93

100+ $11.67

500+ $11.01

1000+ $9.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Circlips - Economy Quality
Bore:: 220mm
Outside Diameter:: 232mm
Material:: Sprung Carbon Steel
Thickness:: 5mm
Groove Diameter:: 226mm

Technical

---	Clip Dimensions
Bore Size	220mm
s (ring thickness)	5mm
Thickness tolerance	-0.12mm
Unstressed diameter d3	232mm
Unstressed diameter tolerance	+1.70-0.72mm
Lug a	14.2mm
Beam b	14mm
d5	4mm
Weight	315 g
---	Groove Requirements
Groove diameter	226mm
Groove tolerance	0.72mm
Minimum groove width	5.15mm
Groove depth	3mm
