SKU: D1300-230

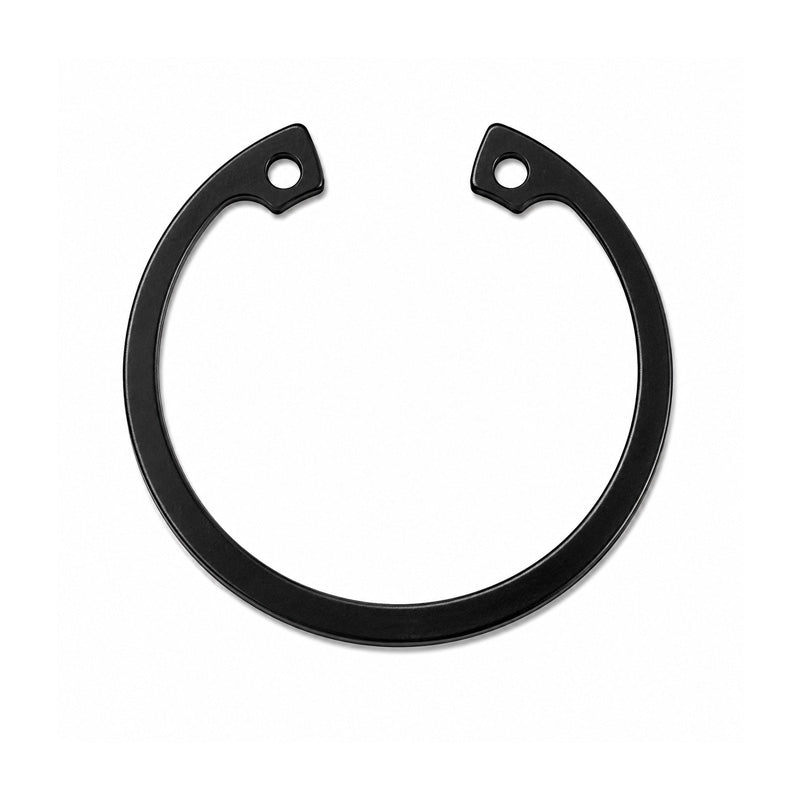

Internal Circlip for 230mm Bore Diameter Un-Sprung Diameter 242mm

Name: Internal Circlip for 230mm Bore Diameter Un-Sprung Diameter 242mm
Brand: Simply Circlips
SKU: D1300-230
Price: 11.75 USD
Availability: InStock

$11.75 ex VAT

Sale Sold out

Equivalent to: D1300-230

In stock

Price Break

5+ $8.75

10+ $8.40

20+ $8.22

50+ $7.96

100+ $7.78

500+ $7.34

1000+ $6.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Circlips - Economy Quality
Bore:: 230mm
Outside Diameter:: 242mm
Material:: Sprung Carbon Steel
Thickness:: 5mm
Groove Diameter:: 236mm

Technical

---	Clip Dimensions
Bore Size	230mm
s (ring thickness)	5mm
Thickness tolerance	-0.12mm
Unstressed diameter d3	242mm
Unstressed diameter tolerance	+1.70-0.72mm
Lug a	14.2mm
Beam b	14mm
d5	4mm
Weight	330 g
---	Groove Requirements
Groove diameter	236mm
Groove tolerance	0.72mm
Minimum groove width	5.15mm
Groove depth	3mm
