SKU: D1300-300

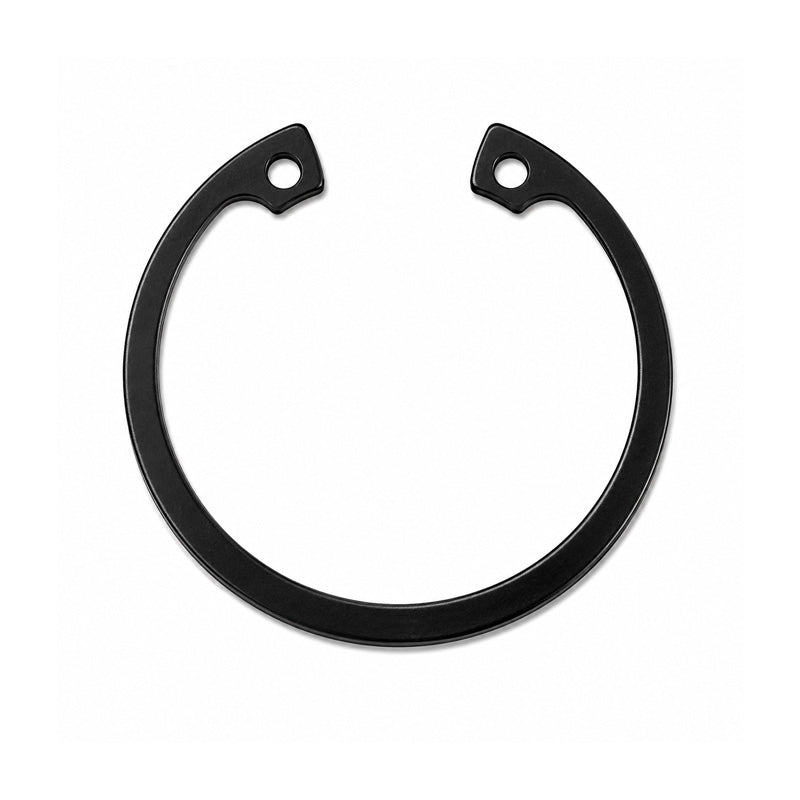

Internal Circlip for 300mm Bore Diameter Un-Sprung Diameter 315mm

Name: Internal Circlip for 300mm Bore Diameter Un-Sprung Diameter 315mm
Brand: Simply Circlips
SKU: D1300-300
Price: 41.19 USD
Availability: InStock

$41.19 ex VAT

Sale Sold out

Equivalent to: D1300-300

In stock

Price Break

5+ $30.69

10+ $29.45

20+ $28.83

50+ $27.90

100+ $27.28

500+ $25.73

1000+ $21.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Circlips - Economy Quality
Bore:: 300mm
Outside Diameter:: 315mm
Material:: Sprung Carbon Steel
Thickness:: 5mm
Groove Diameter:: 308mm

Technical

---	Clip Dimensions
Bore Size	300mm
s (ring thickness)	5mm
Thickness tolerance	-0.12mm
Unstressed diameter d3	315mm
Unstressed diameter tolerance	+2.00-0.81mm
Lug a	16.2mm
Beam b	16mm
d5	5mm
Weight	435 g
---	Groove Requirements
Groove diameter	308mm
Groove tolerance	0.81mm
Minimum groove width	5.15mm
Groove depth	4mm
