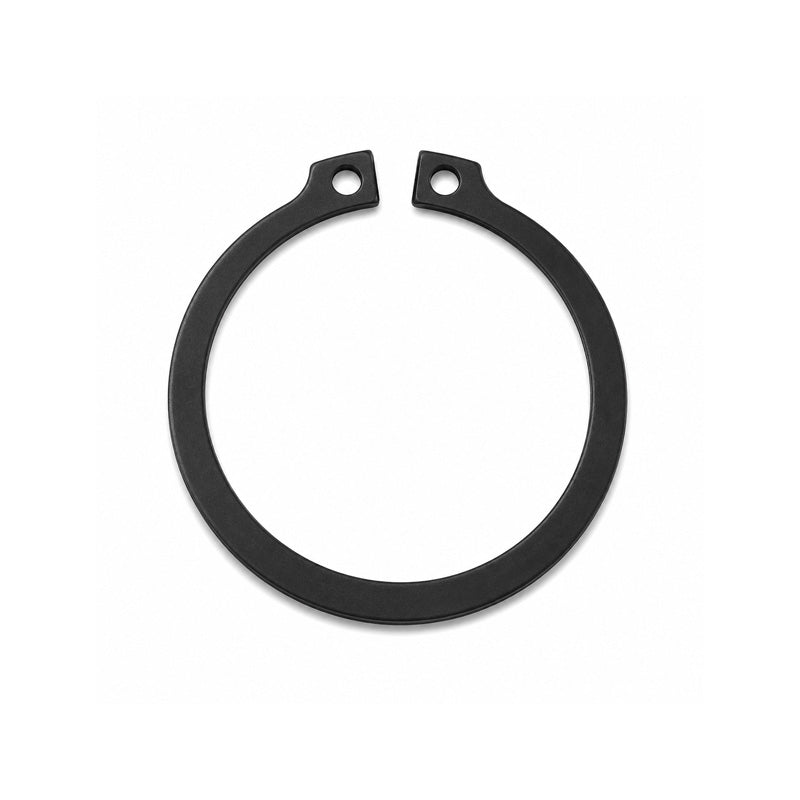

External Circlip for 9mm Shaft Diameter Un-Sprung Diameter 8.4mm

External Circlips: The most common form of axially fitted circlips for shafts with grooves.
The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
Benefits: Cost effective replacement, durable, removable.
Note: Please be aware that these circlips can feature a slightly altered design than pictured. This is to reinforce the strength of the circlip when used in smaller applications. If you require a specific design then please contact us for availability.

Brand / Quality:

Simply Circlips - Economy Quality

Inside Diameter:

8.4mm

Material:

Sprung Carbon Steel

Shaft Size:

9mm

Thickness:

1mm

Groove Diameter:

8.6mm
