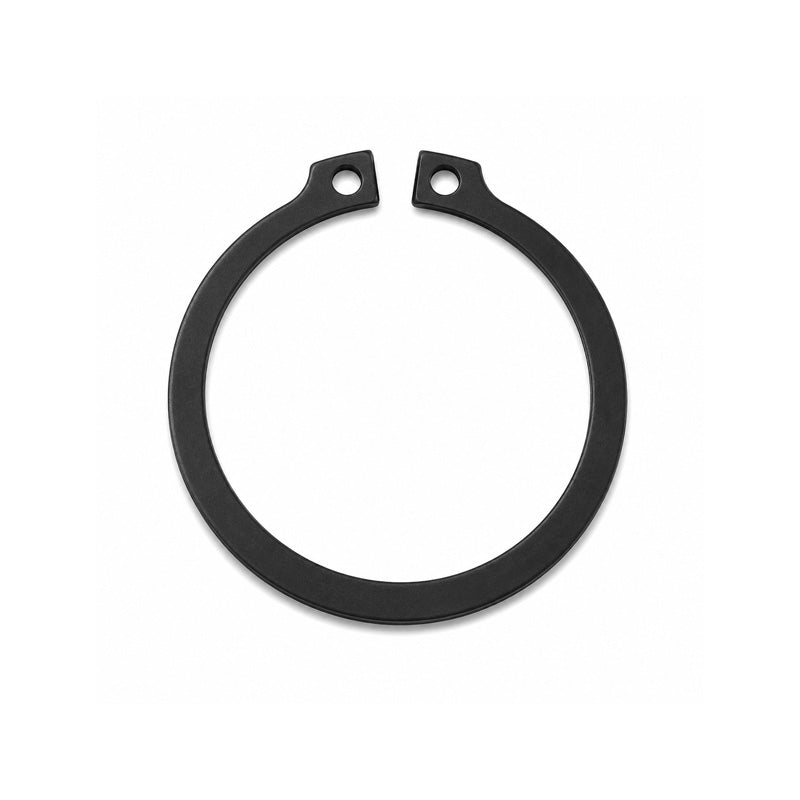

• External Circlip for 240mm Shaft Diameter Un-Sprung Diameter 228mm
1 1

SKU: D1400-240

External Circlip for 240mm Shaft Diameter Un-Sprung Diameter 228mm

External Circlip for 240mm Shaft Diameter Un-Sprung Diameter 228mm
$13.22 ex VAT
$13.22 ex VAT
Sale Sold out

Equivalent to: D1400-240

In stock

Price Break
5+ $9.85
10+ $9.45
20+ $9.25
50+ $8.96
100+ $8.76
500+ $8.26
1000+ $6.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
External Circlips: The most common form of axially fitted circlips for shafts with grooves.
The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
Benefits: Cost effective replacement, durable, removable.
Brand / Quality:
Simply Circlips - Economy Quality
Inside Diameter:
228mm
Material:
Sprung Carbon Steel
Shaft Size:
240mm
Thickness:
5mm
Groove Diameter:
234mm
Technical
--- Clip Dimensions
Shaft Size 240mm
Circlip thickness s 5mm
Thickness tolerance -0.12mm
Unstressed diameter d3 228mm
Unstressed diameter tolerance +0.72/-1.70mm
Lug a 14.2mm
Beam b 14mm
d5 4mm
Weight 310g
--- Groove Details
Groove diameter 234mm
Groove tolerance -0.72mm
Minimum groove width 5.15mm
Groove depth 3.00 mm
