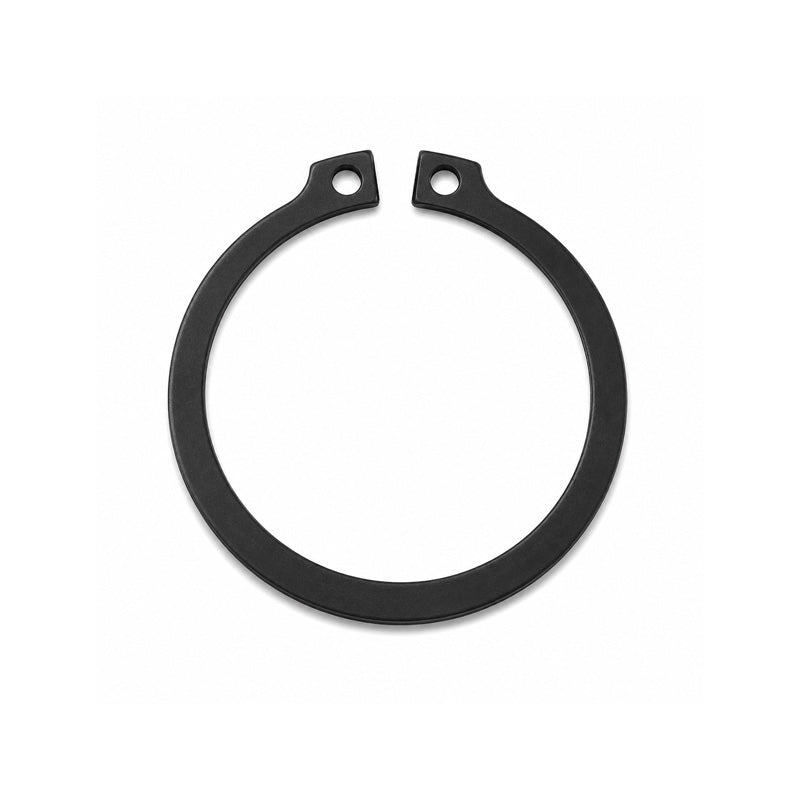

• External Circlip for 300mm Shaft Diameter Un-Sprung Diameter 285mm
1 1

SKU: D1400-300

External Circlip for 300mm Shaft Diameter Un-Sprung Diameter 285mm

External Circlip for 300mm Shaft Diameter Un-Sprung Diameter 285mm
$20.59 ex VAT
$20.59 ex VAT
Sale Sold out

Equivalent to: D1400-300

In stock

Price Break
5+ $15.35
10+ $14.73
20+ $14.42
50+ $13.95
100+ $13.64
500+ $12.87
1000+ $10.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
External Circlips: The most common form of axially fitted circlips for shafts with grooves.
The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
Benefits: Cost effective replacement, durable, removable.
Brand / Quality:
Simply Circlips - Economy Quality
Inside Diameter:
285mm
Material:
Sprung Carbon Steel
Shaft Size:
300mm
Thickness:
5mm
Groove Diameter:
292mm
Technical
--- Clip Dimensions
Shaft Size 300mm
Circlip thickness s 5mm
Thickness tolerance -0.12mm
Unstressed diameter d3 285mm
Unstressed diameter tolerance +0.81/-2.00mm
Lug a 16.2mm
Beam b 16mm
d5 5mm
Weight 440g
--- Groove Details
Groove diameter 292mm
Groove tolerance -0.81mm
Minimum groove width 5.15mm
Groove depth 4.00 mm
