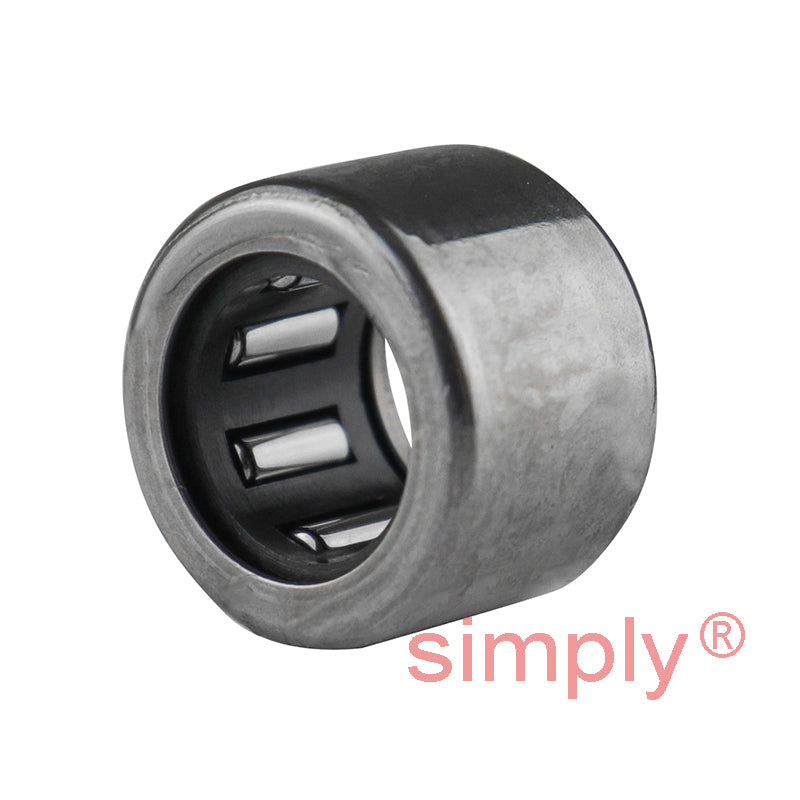

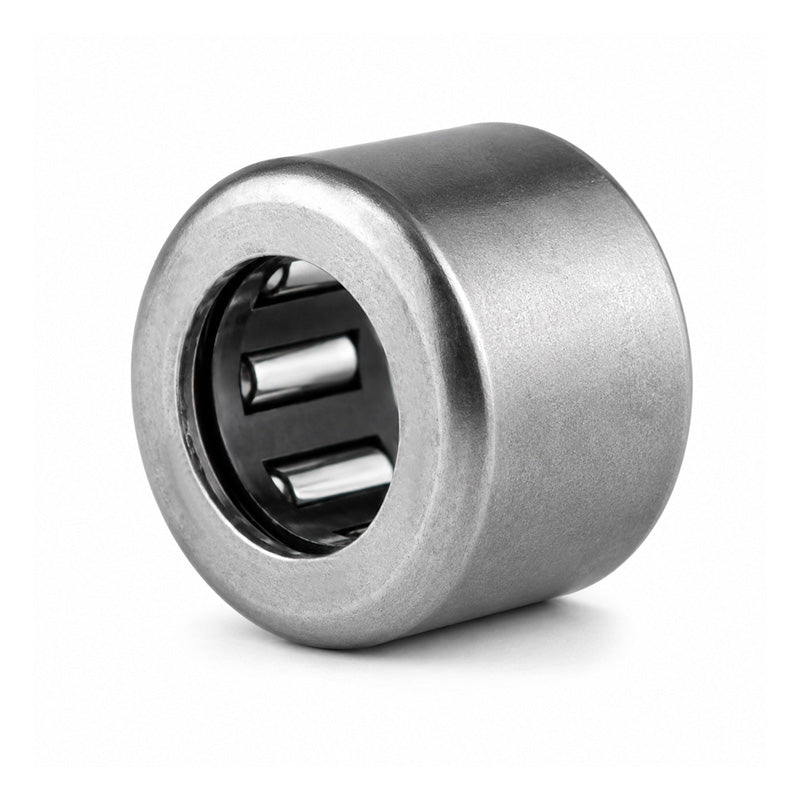

• NTN DCL88 Imperial Drawn Cup Open End Needle Roller Bearing 1/2x11/16x1/2 inch
  • NTN
1 2

SKU: DCL88-NTN

NTN DCL88 Imperial Drawn Cup Open End Needle Roller Bearing 1/2x11/16x1/2 inch

NTN DCL88 Imperial Drawn Cup Open End Needle Roller Bearing 1/2x11/16x1/2 inch
$7.79 ex VAT
$7.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $5.22
4+ $4.92
9+ $4.86
19+ $4.81
49+ $4.75
99+ $4.69
499+ $4.40
999+ $4.34
1999+ $4.28
2999+ $4.22
4999+ $4.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Outside Diameter:
17.46mm = 0.687 (11/16) inch
Width:
12.7mm = 0.5 (1/2) inch
Technical
Fw - Outside diameter 12.7mm
D - Outside diameter 17.463mm
C - Width 12.7mm
Lubrication hole on outer ring? No
Radial clearance CN
Precision class P0
N - Grease lubrication limit speed 13000 tr/min
N - Oil lubrication limit speed 19000 tr/min
Cr - Dynamic load rating 6.7 kN
C0r - Static load rating 8.5 kN
Tmin - Minimum operating temperature -40 Deg C
Tmax - Maximum operating temperature +120 Deg C
