SKU: DEL.35MM

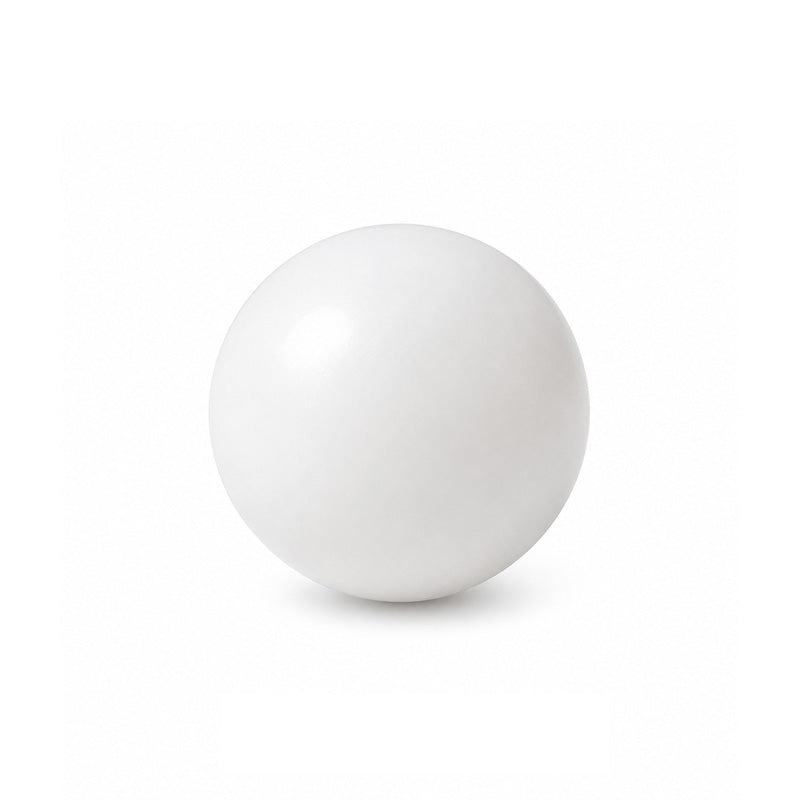

35mm Diameter Solid Delrin Polyoxymethylene (POM) / Celcon Plastic Ball
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Delrin Balls: Delrin is the name commonly used for the less commonly
known polyoxymethylene (POM) acetal plastic. It has high mechanical strength and rigidity, is tough and tolerant to repeated impacts and has a good long term fatigue endurance. It has excellent resistance to petroleum based solvents, moisture and other neutral chemicals. Its has good electrical insulating properties and self lubricates in use. It can be operated within a wide operating temperature range up to 150 Deg C. |
- Brand / Quality:
- Simply Ital Ball - High Quality
- Outside Diameter:
- 35mm
Technical
| Ball diameter | 35mm |
|---|---|
| Approx Weight (per ball) | 31.6535 g |
| ISO Symbol | POM |
| TRADE NAME | Delrin Celcon |
| Chemical name | Polyoxymethylene (Delrin) |
| Specific weight kg/dm<sup>3</sup> | 1.42 ASTM D.792 |
| Water absorbtion N% | 0.9 ASTM D.570 |
| Tensile strength kg/cm<sup>2</sup> | 680 ASTM D.638 |
| Stretch % | 75 ASTM D.638 ASTM |
| Modulus of tensile elasticity kg /cm<sup>3</sup> | 29.000 ASTM D.638 |
| Impact strength IZOD kg.cm/cm | 18 at 25 deg C and 10 at 40 Deg C ASTM D.256 |
| Rockwell hardness | 120 Scale R ASTM D.785 |
| Max operation temp | 150 deg C |
| ASTM | This is the test method used. |
| Other information | These balls will not float |
