SKU: DG10PW-DURB

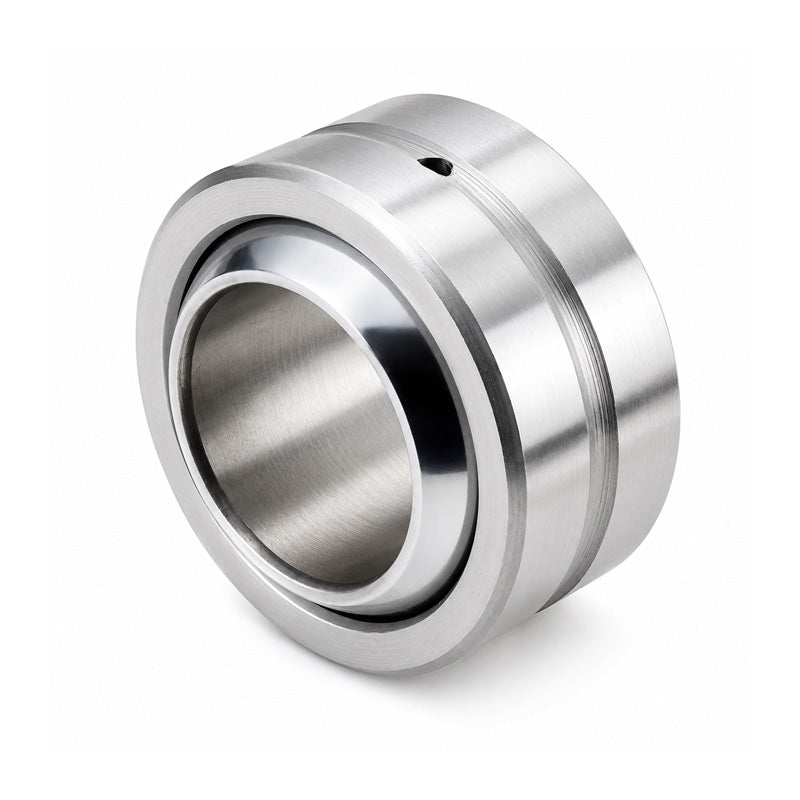

Durbal DG10PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x22x14mm - Allow 2-3 Days
Durbal DG10PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x22x14mm - Allow 2-3 Days
Regular price
$13.22
ex VAT
Regular price
Sale price
$13.22
ex VAT
Equivalent to: GE10PW
In stock
Price Break
10+
$9.85
19+
$9.45
29+
$9.25
39+
$8.96
49+
$8.76
74+
$8.26
99+
$6.97
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
DURBAL Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a bearing brass outer ring lined with bronze - PTFE-composite. For use under high pressure and dynamic loads. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 10mm
- Material:
- PTFE Lined
Technical
Technical
| d | 10mm |
|---|---|
| d1 | 12.9mm |
| D | 22mm |
| dk | 19mm |
| B | 14mm |
| C | 10.5mm |
| rs | 0.3mm |
| r1s | 1.2mm |
| tilt angle α | 13 deg |
| weight | 0.031kg |
| basic load rating dyn C | 17 kN |
| basic load rating stat Co | 50 kN |
| radial clearance CN | 4-28 µm |
