SKU: DG12PB-DURB
Durbal DG12PB Maintenance Required Steel / Bronze Spherical Plain Bearing 12x26x16mm - Allow 2-3 Days
Durbal DG12PB Maintenance Required Steel / Bronze Spherical Plain Bearing 12x26x16mm - Allow 2-3 Days
Regular price
$10.29
ex VAT
Regular price
Sale price
$10.29
ex VAT
Equivalent to: GE12PB
In stock
Price Break
10+
$7.66
19+
$7.35
29+
$7.20
39+
$6.97
49+
$6.81
74+
$6.42
99+
$5.42
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description

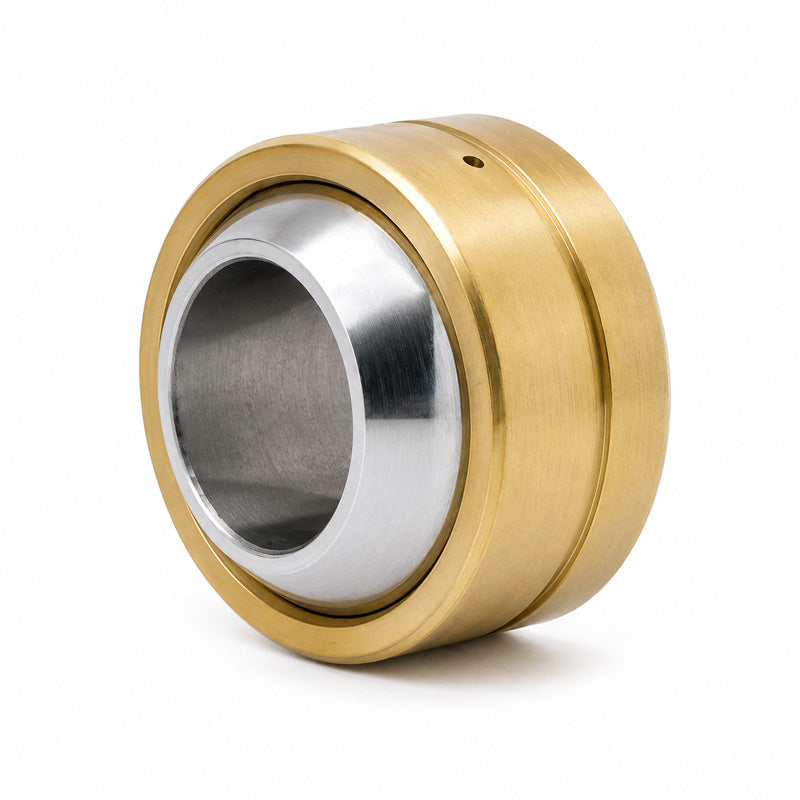

DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Bearing Brass: These spherical bearings consist of a hardened, polished, hard chromium-plated steel joint ball and a bearing brass outer ring with oil groove and drill holes. For use with high impact loads and alternating stresses in radial and axial directions. Preferred in situations with large swivelling movements. Temperature range: -40 deg C to +110 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| d1 | 15.4mm |
| D | 26mm |
| dk | 22.2mm |
| B | 16mm |
| C | 12mm |
| rs | 0.4mm |
| r1s | 1.2mm |
| Tilt angle α | 13 Deg |
| Weight | 0.065 kg |
| Basic load rating dyn C | 24 kN |
| Basic load rating stat Co | 58 kN |
| CN | 40-90 µm |
