SKU: DG16PB-DURB

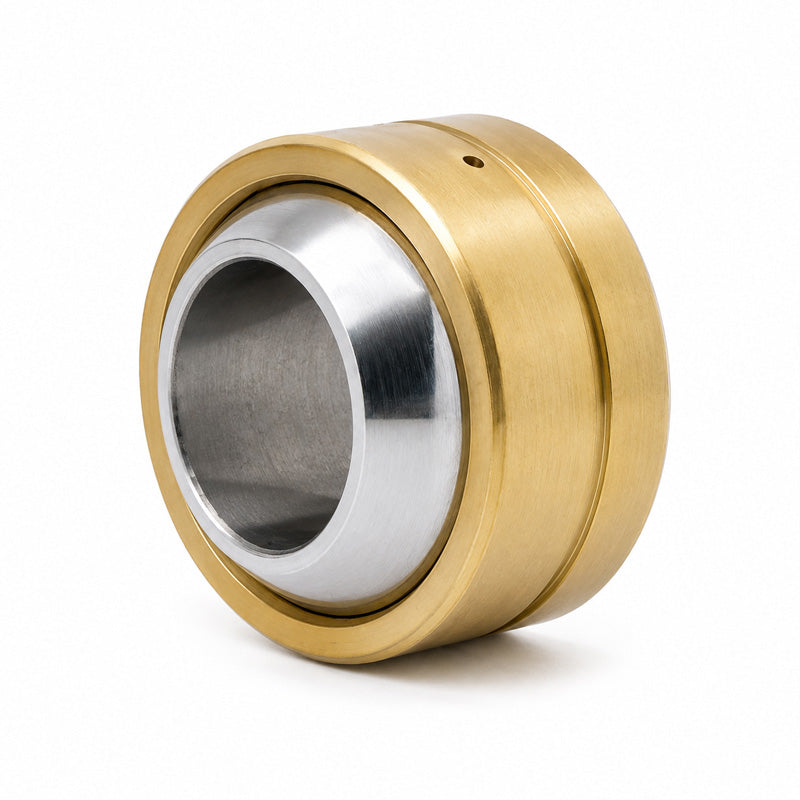

Durbal DG16PB Maintenance Required Steel / Bronze Spherical Plain Bearing 16x32x21mm
Durbal DG16PB Maintenance Required Steel / Bronze Spherical Plain Bearing 16x32x21mm
Equivalent to: GE16PB
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Bearing Brass: These spherical bearings consist of a hardened, polished, hard chromium-plated steel joint ball and a bearing brass outer ring with oil groove and drill holes. For use with high impact loads and alternating stresses in radial and axial directions. Preferred in situations with large swivelling movements. Temperature range: -40 deg C to +110 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| d1 | 19.3mm |
| D | 32mm |
| dk | 28.5mm |
| B | 21mm |
| C | 15mm |
| rs | 0.4mm |
| r1s | 1.5mm |
| Tilt angle α | 15 Deg |
| Weight | 0.1 kg |
| Basic load rating dyn C | 39 kN |
| Basic load rating stat Co | 92 kN |
| CN | 50-110 µm |
