SKU: DG18PB-DURB

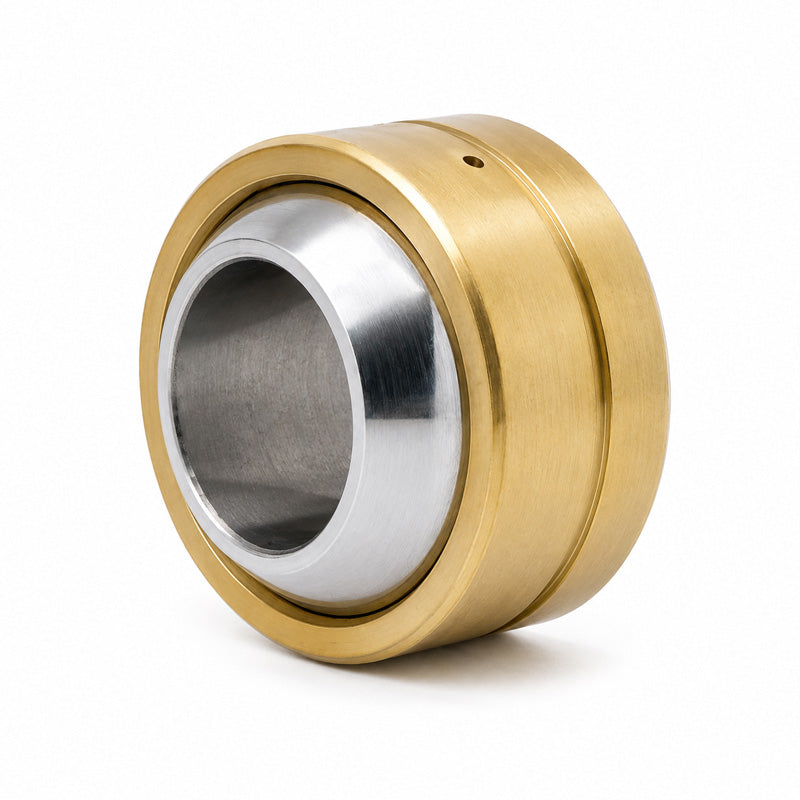

Durbal DG18PB Maintenance Required Steel / Bronze Spherical Plain Bearing 18x35x23mm
Durbal DG18PB Maintenance Required Steel / Bronze Spherical Plain Bearing 18x35x23mm
Equivalent to: GE18PB
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Bearing Brass: These spherical bearings consist of a hardened, polished, hard chromium-plated steel joint ball and a bearing brass outer ring with oil groove and drill holes. For use with high impact loads and alternating stresses in radial and axial directions. Preferred in situations with large swivelling movements. Temperature range: -40 deg C to +110 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 18mm
- Material:
- Bronze Lined
Technical
Technical
| d | 18mm |
|---|---|
| d1 | 21.8mm |
| D | 35mm |
| dk | 31.7mm |
| B | 23mm |
| C | 16.5mm |
| rs | 0.4mm |
| r1s | 1.5mm |
| Tilt angle α | 15 Deg |
| Weight | 0.125 kg |
| Basic load rating dyn C | 48 kN |
| Basic load rating stat Co | 112 kN |
| CN | 50-110 µm |
