SKU: DGE600ES-2RS-DURB

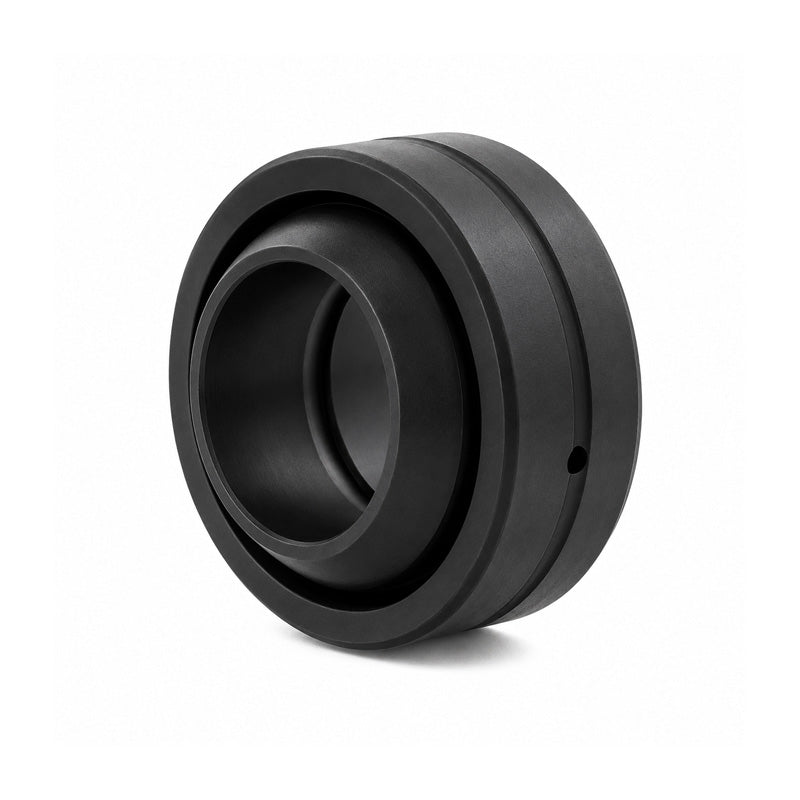

Durbal DGE600ES-2RS Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing with Seals 600x800x272mm
Durbal DGE600ES-2RS Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing with Seals 600x800x272mm
Equivalent to: GE600DO2RS GE600ES2RS
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing with Seals - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes and 2RS lip seals on both sides. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 600mm
Technical
Technical
| d | 600mm |
|---|---|
| d1 | 644.9mm |
| D | 800mm |
| dk | 700mm |
| B | 272mm |
| C | 230mm |
| rs | 2mm |
| r1s | 5mm |
| tilt angle α | 3.6 deg |
| weight | 407kg |
| basic load rating dyn C | 13685 kN |
| basic load rating stat Co | 68425 kN |
| CN | 160-320 µm |
