SKU: DGE950ES-DURB

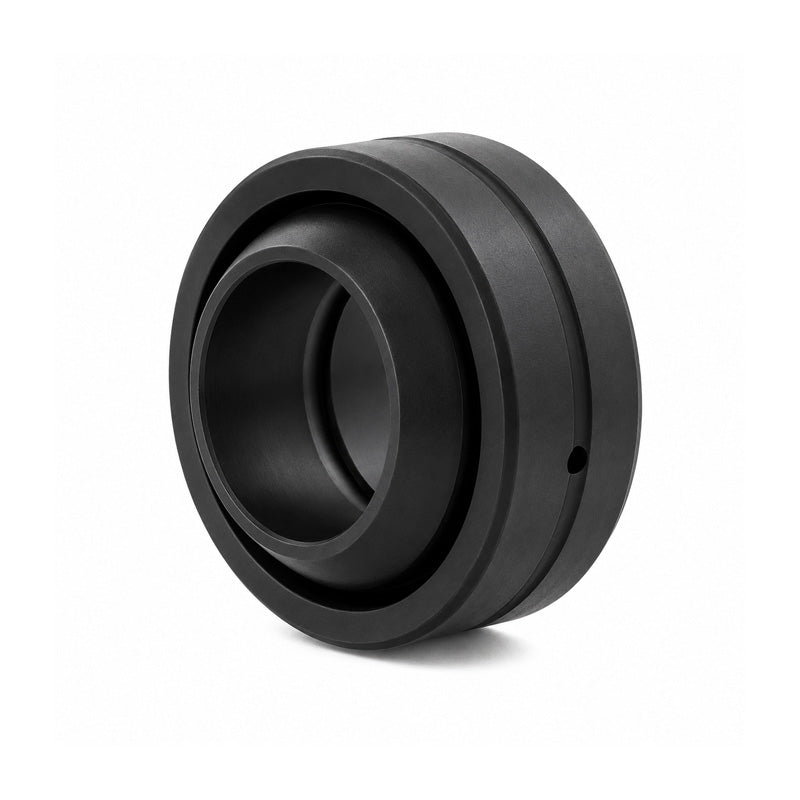

Durbal DGE950ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 950x1250x400mm
Durbal DGE950ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 950x1250x400mm
Equivalent to: GE950DO GE950ES
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 950mm
Technical
Technical
| d | 950mm |
|---|---|
| d1 | 1024.6mm |
| D | 1250mm |
| dk | 1100mm |
| B | 400mm |
| C | 340mm |
| rs | 4mm |
| r1s | 7.5mm |
| tilt angle α | 3.3 deg |
| weight | 1420kg |
| basic load rating dyn C | 31790 kN |
| basic load rating stat Co | 158950 kN |
| CN | 195-405 µm |
