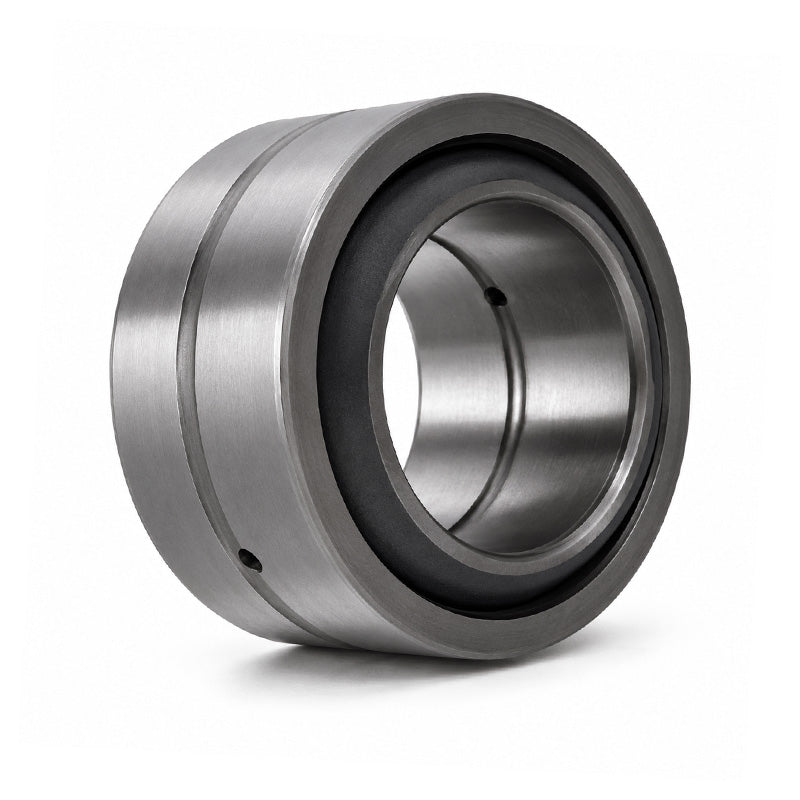

Durbal DGEG220ES-2RS Maintenance Required Steel / Steel Spherical Plain Bearing with Seals 220x340x175mm

DURBAL Maintenance Required Spherical-Plain Bearing with Seals - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes and 2RS lip seals on both sides. (Outer ring has a split from size 15) For use with high and alternating loads.Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.

Wider joint ball and larger outside diameter compared to DGE_ES-2RS series, to enable higher load ratings and larger tilt angle

Brand / Quality:

Durbal - High Quality

Inside Diameter:

220mm
