SKU: DGEZ101ES-DURB

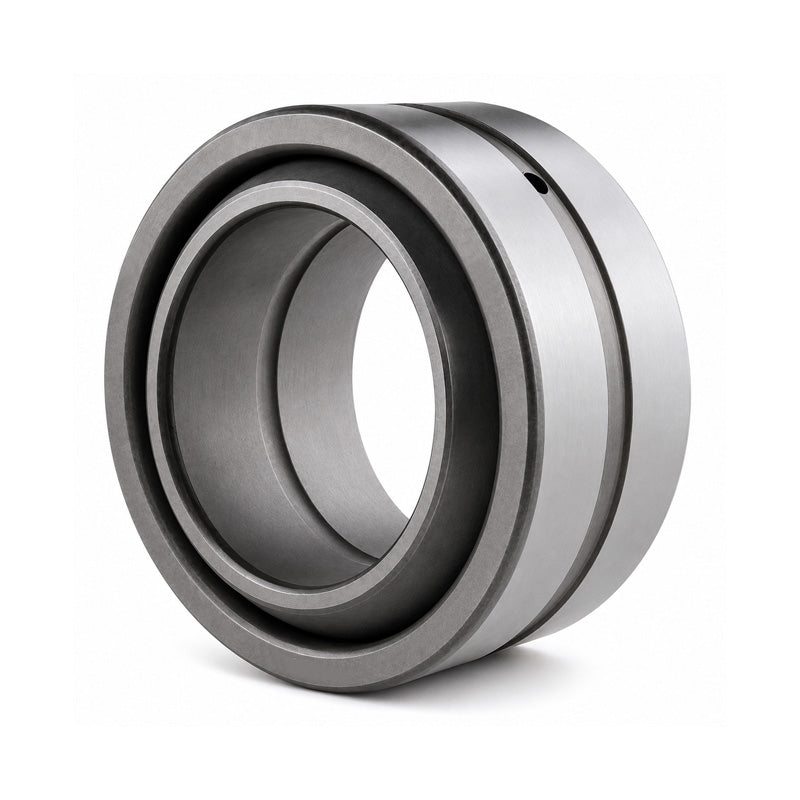

Durbal DGEZ101ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 4x4-9/16x6-1/4 inch
Durbal DGEZ101ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 4x4-9/16x6-1/4 inch
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
Technical
Technical
| d | 101.6mm = 4inch |
|---|---|
| d1 | 115.8mm |
| D | 158.75mm |
| dk | 146mm |
| B | 88.9mm |
| C | 76.2mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 7kg |
| basic load rating dyn C | 900 kN |
| basic load rating stat Co | 2650 kN |
| CN | 130-230 µm |
Reviews
Reviews
☆☆☆☆☆ (0 total reviews)
