SKU: DGEZ12ES-DURB

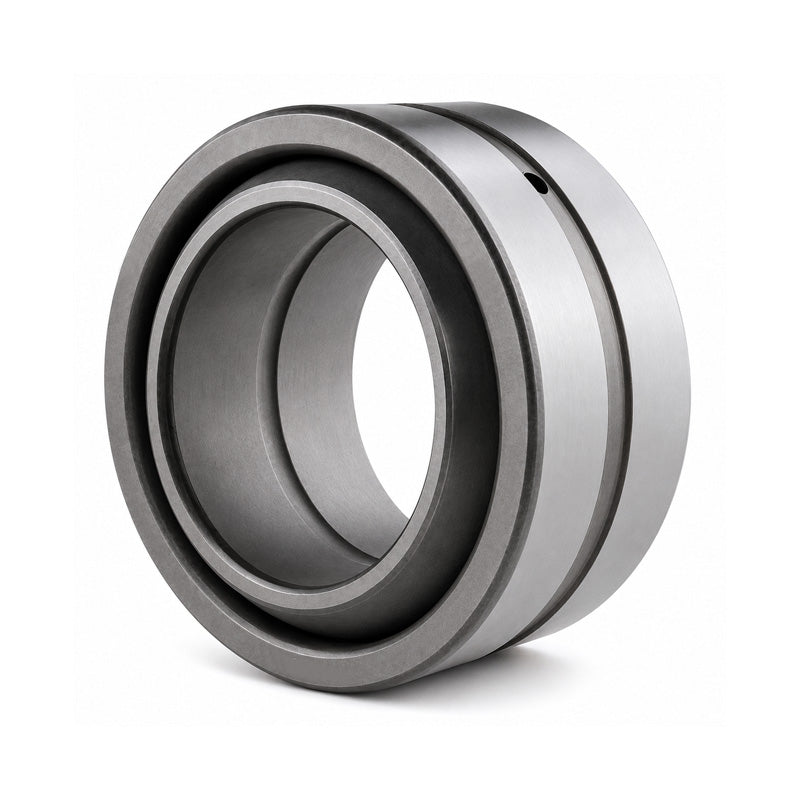

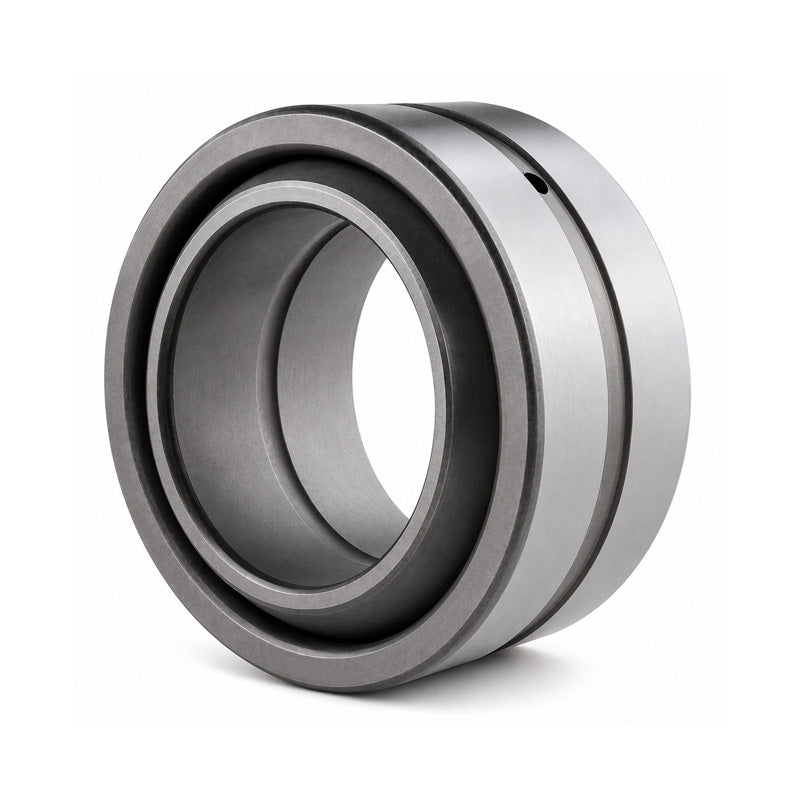

Durbal DGEZ12ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 1/2x9/16x7/8 inch - Allow 2-3 Days
Durbal DGEZ12ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 1/2x9/16x7/8 inch - Allow 2-3 Days
Regular price
$7.32
ex VAT
Regular price
Sale price
$7.32
ex VAT
In stock
Price Break
10+
$5.45
19+
$5.23
29+
$5.12
39+
$4.96
49+
$4.85
74+
$4.57
99+
$3.86
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| d | 12.7mm = 1/2inch |
|---|---|
| d1 | 14.2mm |
| D | 22.225mm |
| dk | 18mm |
| B | 11.1mm |
| C | 9.525mm |
| rs | 0.3mm |
| r1s | 0.6mm |
| tilt angle α | 6 deg |
| weight | 0.022kg |
| basic load rating dyn C | 13 kN |
| basic load rating stat Co | 41 kN |
| CN | 50-150 µm |
