SKU: DGEZ69ES-DURB

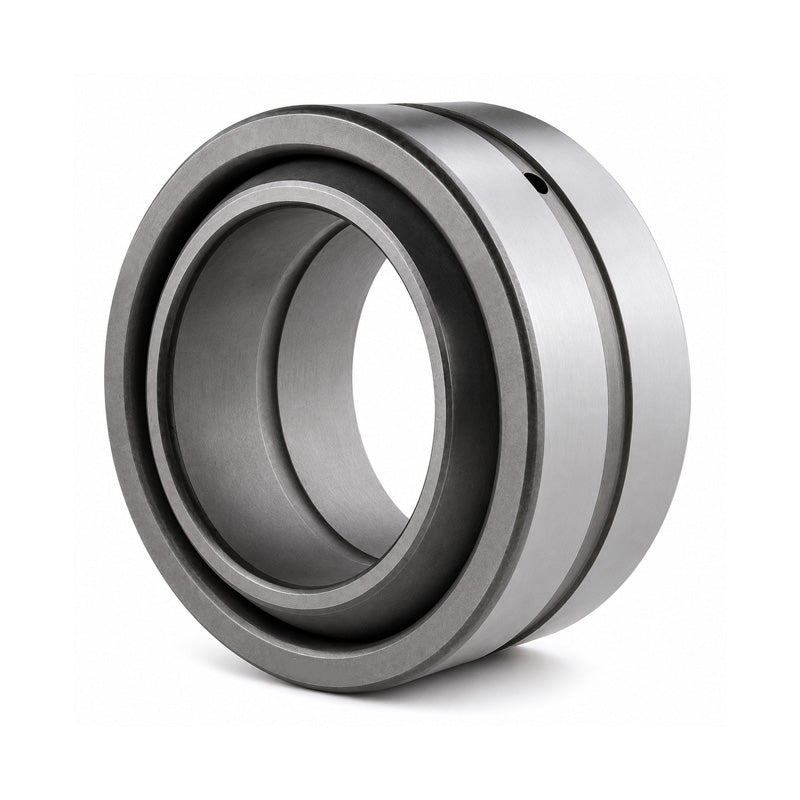

Durbal DGEZ69ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 2-3/4x3-1/8x4-3/8 inch
Durbal DGEZ69ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 2-3/4x3-1/8x4-3/8 inch
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
Technical
Technical
| d | 69.85mm = 2-3/4inch |
|---|---|
| d1 | 79.2mm |
| D | 111.13mm |
| dk | 100mm |
| B | 61.112mm |
| C | 52.375mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 2.42kg |
| basic load rating dyn C | 415 kN |
| basic load rating stat Co | 1250 kN |
| CN | 100-200 µm |
