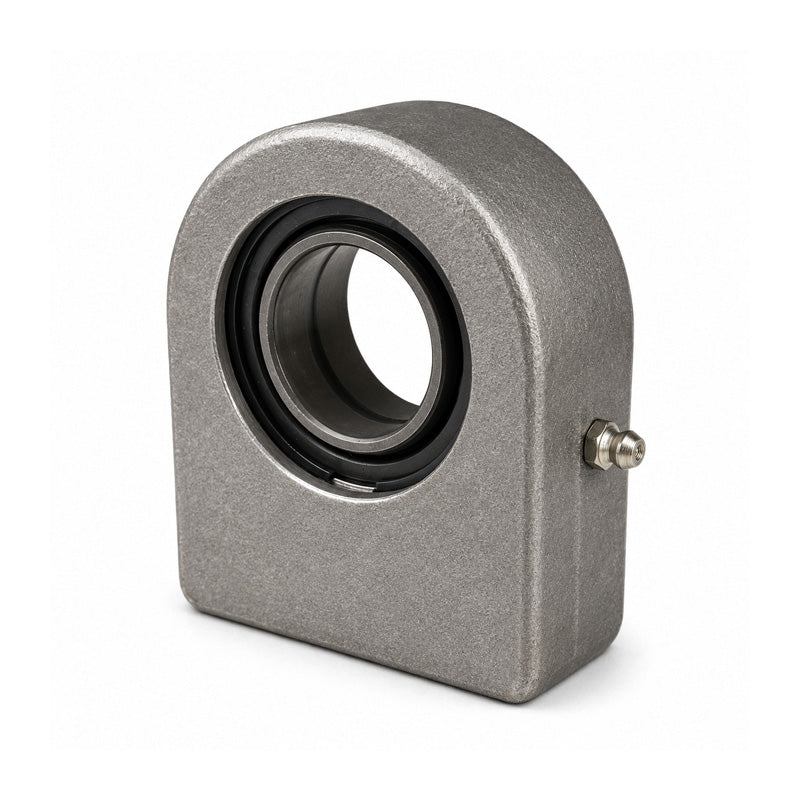

• Durbal DGF30DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
  • Durbal
1 2

SKU: DGF30DO-DURB

Durbal DGF30DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End

Durbal DGF30DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

Equivalent to: GF30DO SCF30ES

In stock

Price Break
10+ $21.60
19+ $20.39
29+ $20.14
39+ $19.90
49+ $19.66
74+ $19.42
99+ $18.20
199+ $17.96
249+ $17.72
499+ $17.47
999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_DGF

Fixed as standard with maitenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings; with square welding end

Brand / Quality:
Durbal - High Quality
Inside Diameter:
30mm
Technical
d 30mm
d1 34.2mm
d2 65mm
dk 40.7mm
B 22mm
C1 28mm
l6 83.5mm
h2 51mm
tilt angle α 6 deg
weight 0.87kg
basic load rating dyn C 49.6 kN
basic load rating stat Co 94.4 kN
radial clearance CN 8-100 µm
