• Durbal DGF35DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
  • Durbal
1 2

SKU: DGF35DO-DURB

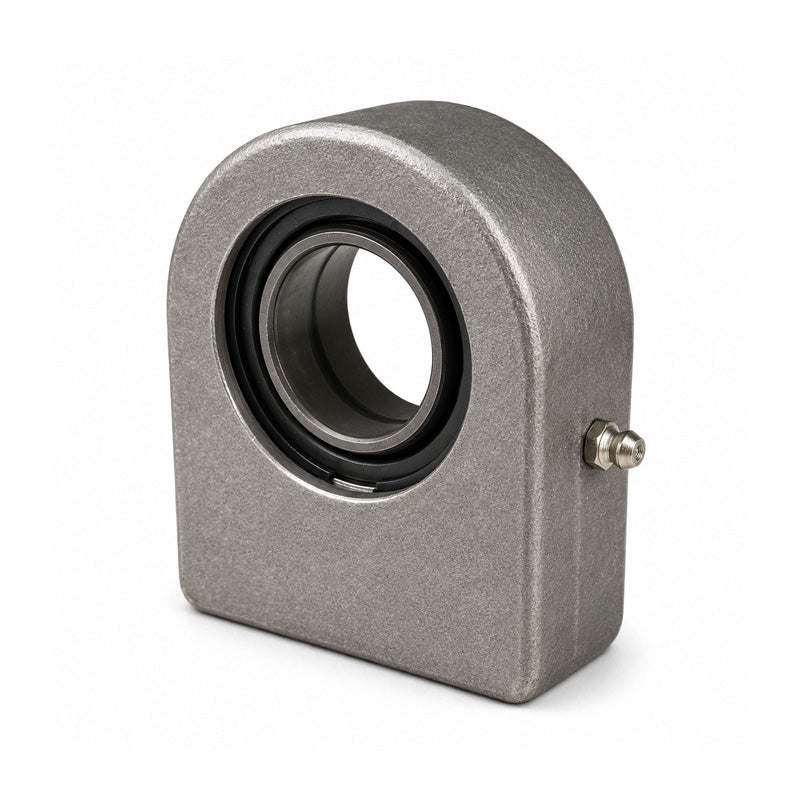

Durbal DGF35DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End

Durbal DGF35DO Maintenance Required Hydraulic Rod End with Rectangular Section Welding End
$44.56 ex VAT
$44.56 ex VAT
Sale Sold out

Equivalent to: GF35DO SCF35ES

Low stock

Price Break
10+ $29.85
19+ $28.17
29+ $27.84
39+ $27.50
49+ $27.17
74+ $26.83
99+ $25.16
199+ $24.82
249+ $24.48
499+ $24.15
999+ $23.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_DGF

Fixed as standard with maitenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings; with square welding end

Brand / Quality:
Durbal - High Quality
Inside Diameter:
35mm
Technical
d 35mm
d1 39.7mm
d2 83mm
dk 47mm
B 25mm
C1 30mm
l6 102.5mm
h2 61mm
tilt angle ? 6 deg
weight 1.5kg
basic load rating dyn C 64 kN
basic load rating stat Co 156.8 kN
radial clearance CN 8-100 µm
