SKU: DGIHN-K100LO-DURB

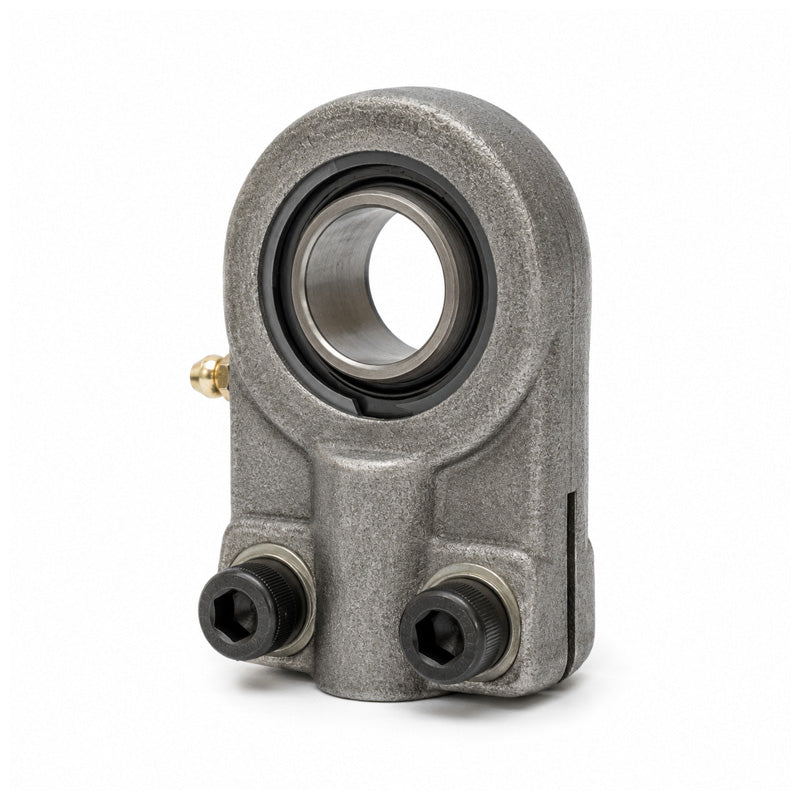

Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread

Name: Durbal DGIHN-K100LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M80x3 Thread
Brand: Durbal
SKU: DGIHN-K100LO-DURB
Price: 741.55 USD
Availability: InStock

$741.55 ex VAT

Sale Sold out

Equivalent to: GIHNK100LO SIQG100ES

In stock

Price Break

10+ $496.71

19+ $468.80

29+ $463.22

39+ $457.64

49+ $452.06

74+ $446.48

99+ $418.58

199+ $412.99

249+ $407.41

499+ $401.83

999+ $390.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M80x3
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 100mm

Technical

Thread Direction	Right
d	100mm
d1	113mm
d2	210mm
d4	110mm
d5	178mm
dk	150mm
G (Thread)	M80x3mm
B	100mm
C1	84mm
C2	62mm
l3	96mm
l4	322mm
l7	98mm
h1	210mm
tilt angle α	4 deg
weight	28kg
basic load rating dyn C	488 kN
basic load rating stat Co	848 kN
radial clearance CN	8-165 µm
