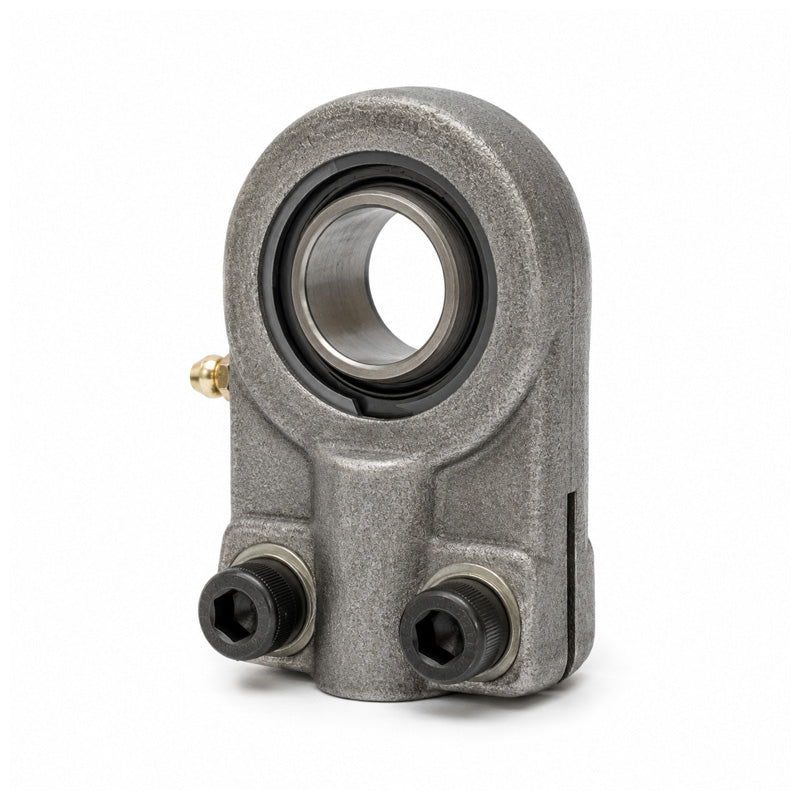

Durbal DGIHN-K20LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread

Name: Durbal DGIHN-K20LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
Brand: Durbal
SKU: DGIHN-K20LO-DURB
Price: 30.33 USD
Availability: InStock

$30.33 ex VAT

Sale Sold out

Equivalent to: GIHNK20LO SIQG20ES

In stock

Price Break

10+ $20.32

19+ $19.18

29+ $18.95

39+ $18.72

49+ $18.49

74+ $18.26

99+ $17.12

199+ $16.89

249+ $16.67

499+ $16.44

999+ $15.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 20mm

Technical

Thread Direction	Right
d	20mm
d1	25mm
d2	47mm
d4	25mm
d5	47mm
dk	29mm
G (Thread)	M16x1.5mm
B	20mm
C1	17mm
C2	19mm
l3	23mm
l4	77mm
l7	22mm
h1	52mm
tilt angle α	4 deg
weight	0.4kg
basic load rating dyn C	24 kN
basic load rating stat Co	38.4 kN
radial clearance CN	8-82 µm
