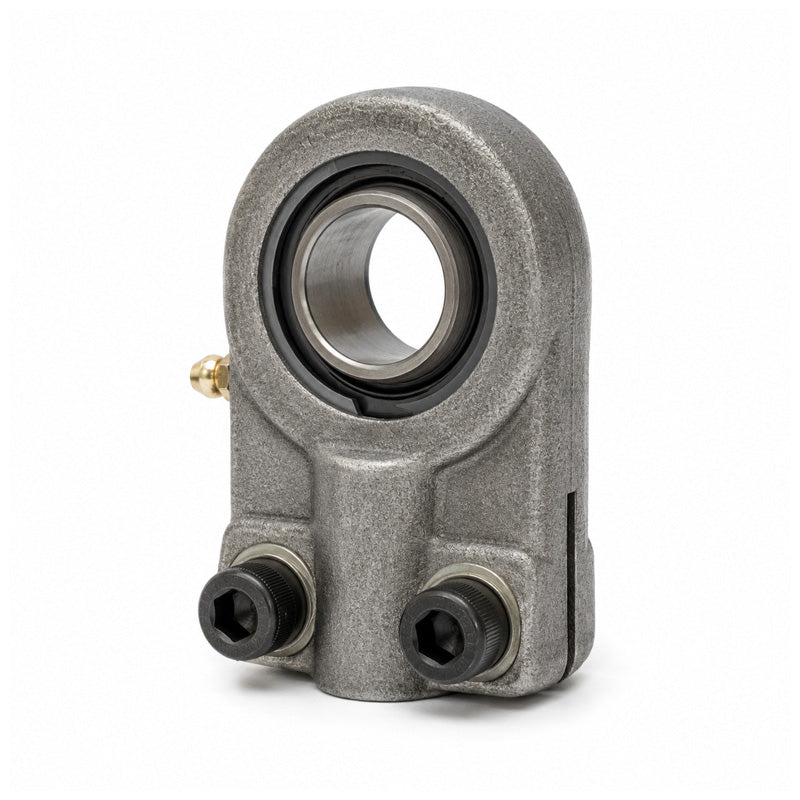

Durbal DGIHN-K25LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M20x1.5 Thread

Name: Durbal DGIHN-K25LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M20x1.5 Thread
Brand: Durbal
SKU: DGIHN-K25LO-DURB
Price: 41.77 USD
Availability: InStock

$41.77 ex VAT

Sale Sold out

Equivalent to: GIHNK25LO SIQG25ES

In stock

Price Break

10+ $27.98

19+ $26.41

29+ $26.10

39+ $25.78

49+ $25.47

74+ $25.15

99+ $23.58

199+ $23.27

249+ $22.95

499+ $22.64

999+ $22.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 25mm

Technical

Thread Direction	Right
d	25mm
d1	30.5mm
d2	58mm
d4	30mm
d5	54mm
dk	35.5mm
G (Thread)	M20x1.5mm
B	25mm
C1	22mm
C2	19mm
l3	29mm
l4	96mm
l7	27mm
h1	65mm
tilt angle α	4 deg
weight	0.66kg
basic load rating dyn C	38.4 kN
basic load rating stat Co	62.4 kN
radial clearance CN	8-100 µm
