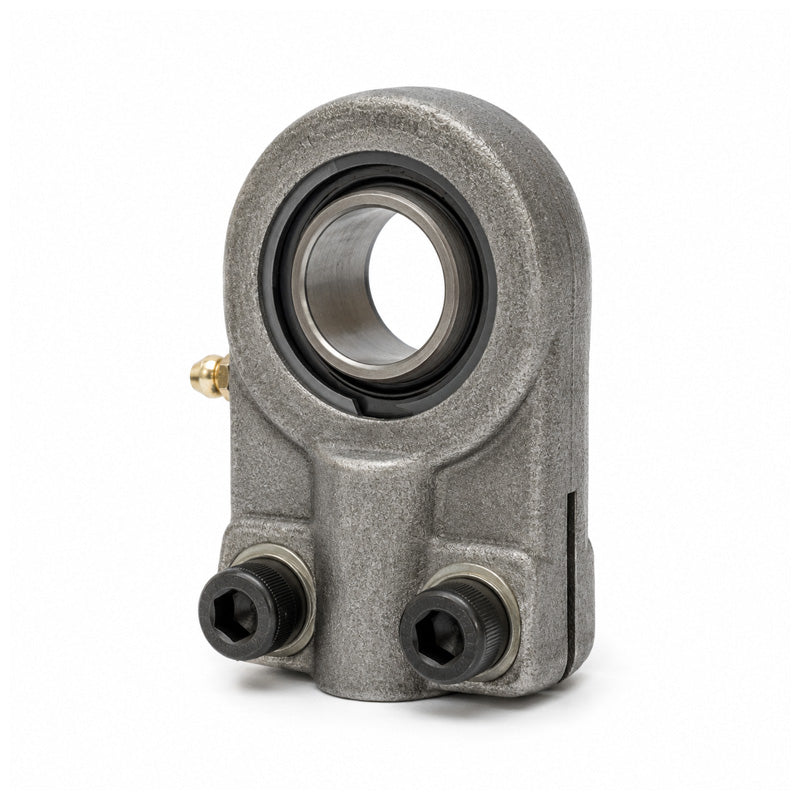

• Durbal DGIHN-K32LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M27x2 Thread
  • Durbal
1 2

SKU: DGIHN-K32LO-DURB

Durbal DGIHN-K32LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M27x2 Thread

Durbal DGIHN-K32LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M27x2 Thread
$90.92 ex VAT
$90.92 ex VAT
Sale Sold out

Equivalent to: GIHNK32LO SIQG32ES

In stock

Price Break
10+ $60.90
19+ $57.48
29+ $56.80
39+ $56.11
49+ $55.43
74+ $54.74
99+ $51.32
199+ $50.64
249+ $49.95
499+ $49.27
999+ $47.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread Size:
M27x2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
32mm
Technical
Thread Direction Right
d 32mm
d1 37mm
d2 71mm
d4 38mm
d5 66mm
dk 44mm
G (Thread) M27x2mm
B 32mm
C1 28mm
C2 22mm
l3 37mm
l4 118.5mm
l7 32mm
h1 80mm
tilt angle α 4 deg
weight 1.2kg
basic load rating dyn C 53.6 kN
basic load rating stat Co 91.2 kN
radial clearance CN 8-100 µm
