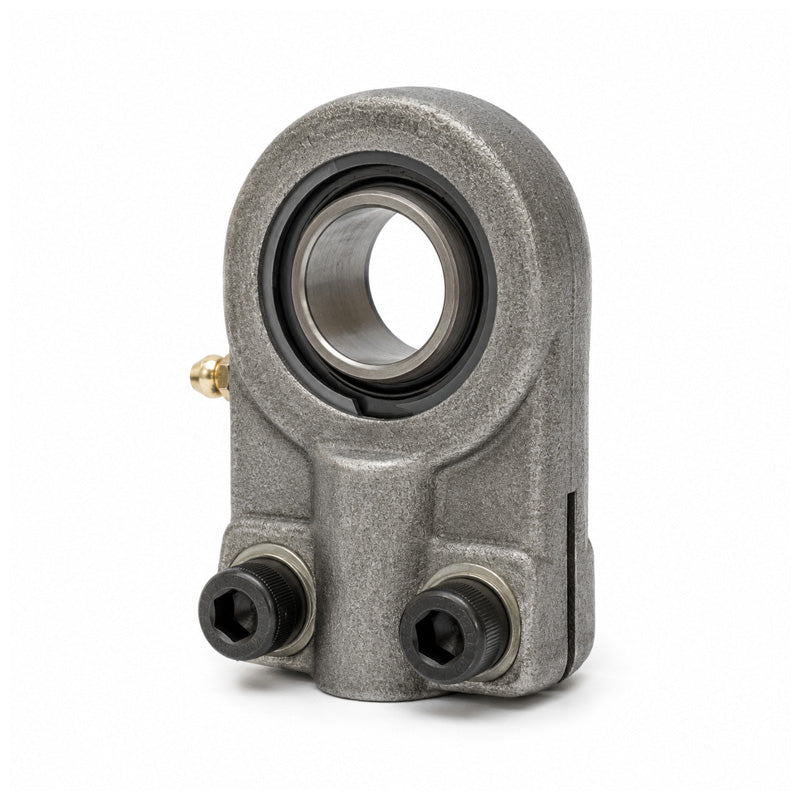

Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread

Name: Durbal DGIHN-K40LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M33x2 Thread
Brand: Durbal
SKU: DGIHN-K40LO-DURB
Price: 149.50 USD
Availability: InStock

$149.50 ex VAT

Sale Sold out

Equivalent to: GIHNK40LO SIQG40ES

In stock

Price Break

10+ $100.14

19+ $94.52

29+ $93.39

39+ $92.27

49+ $91.14

74+ $90.02

99+ $84.39

199+ $83.26

249+ $82.14

499+ $81.01

999+ $78.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M33x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 40mm

Technical

Thread Direction	Right
d	40mm
d1	46mm
d2	90mm
d4	47mm
d5	80mm
dk	53mm
G (Thread)	M33x2mm
B	40mm
C1	33mm
C2	26mm
l3	46mm
l4	146mm
l7	41mm
h1	97mm
tilt angle α	4 deg
weight	2.1kg
basic load rating dyn C	80 kN
basic load rating stat Co	163.2 kN
radial clearance CN	8-120 µm
