SKU: DGIHN-K50LO-DURB

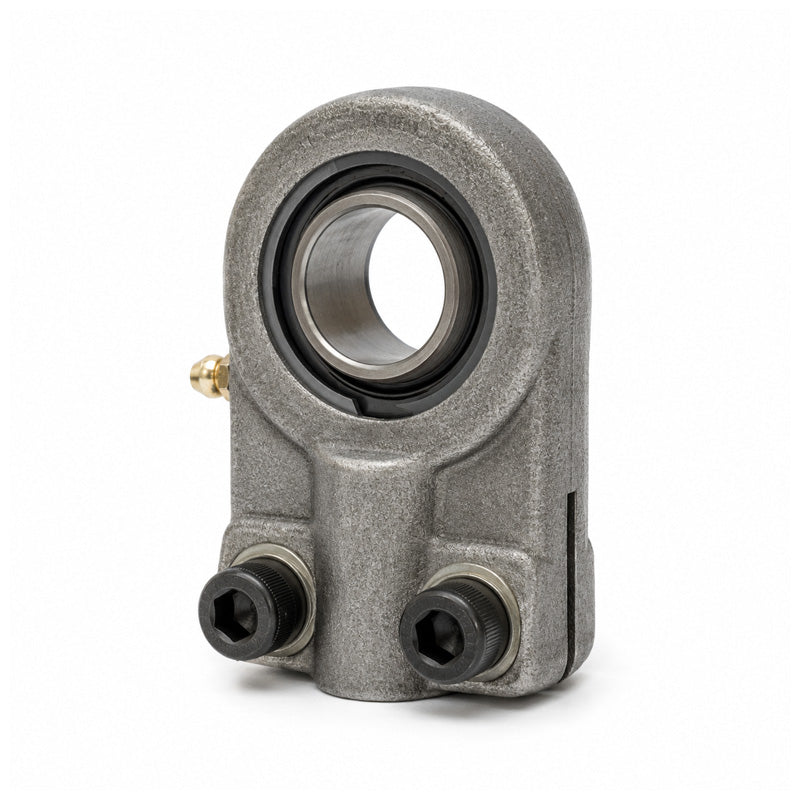

Durbal DGIHN-K50LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M42x2 Thread

Name: Durbal DGIHN-K50LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M42x2 Thread
Brand: Durbal
SKU: DGIHN-K50LO-DURB
Price: 221.29 USD
Availability: InStock

$221.29 ex VAT

Sale Sold out

Equivalent to: GIHNK50LO SIQG50ES

In stock

Price Break

10+ $148.23

19+ $139.90

29+ $138.24

39+ $136.57

49+ $134.91

74+ $133.24

99+ $124.91

199+ $123.25

249+ $121.58

499+ $119.92

999+ $116.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M42x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 50mm

Technical

Thread Direction	Right
d	50mm
d1	57mm
d2	109mm
d4	58mm
d5	96mm
dk	66mm
G (Thread)	M42x2mm
B	50mm
C1	41mm
C2	32mm
l3	57mm
l4	179.5mm
l7	50mm
h1	120mm
tilt angle α	4 deg
weight	4.4kg
basic load rating dyn C	124.8 kN
basic load rating stat Co	248 kN
radial clearance CN	8-120 µm
