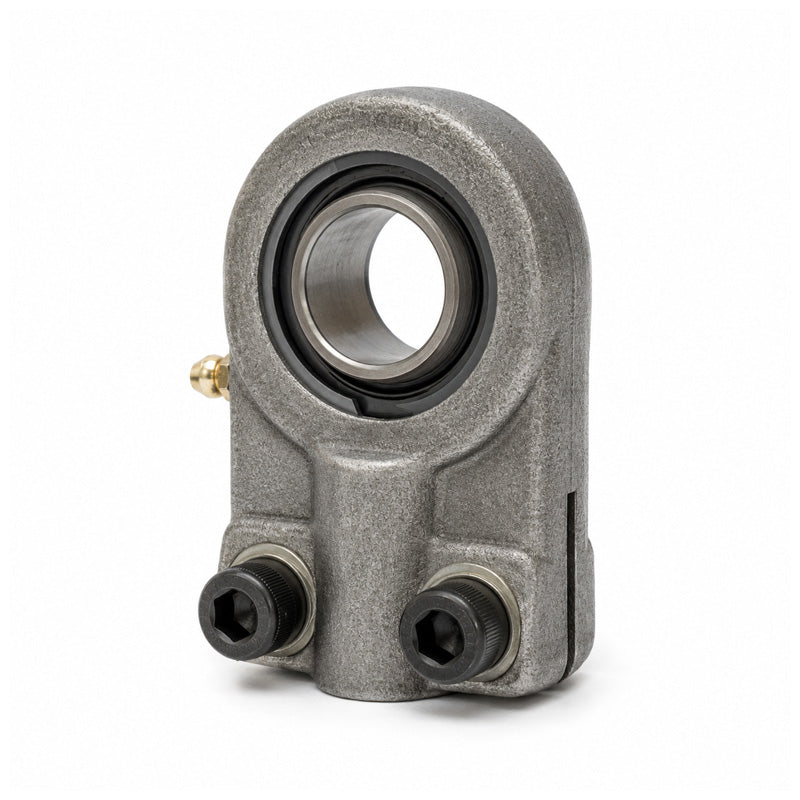

Durbal DGIHN-K63LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M48x2 Thread

Name: Durbal DGIHN-K63LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M48x2 Thread
Brand: Durbal
SKU: DGIHN-K63LO-DURB
Price: 212.53 USD
Availability: InStock

$212.53 ex VAT

Sale Sold out

Equivalent to: GIHNK63LO SIQG63ES

In stock

Price Break

10+ $142.36

19+ $134.36

29+ $132.76

39+ $131.16

49+ $129.56

74+ $127.96

99+ $119.96

199+ $118.36

249+ $116.76

499+ $115.16

999+ $111.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M48x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 63mm

Technical

Thread Direction	Right
d	63mm
d1	71.5mm
d2	136mm
d4	70mm
d5	114mm
dk	8.3mm
G (Thread)	M48x2mm
B	63mm
C1	53mm
C2	38mm
l3	64mm
l4	213mm
l7	62mm
h1	140mm
tilt angle α	4 deg
weight	7.6kg
basic load rating dyn C	204 kN
basic load rating stat Co	344 kN
radial clearance CN	8-142 µm
