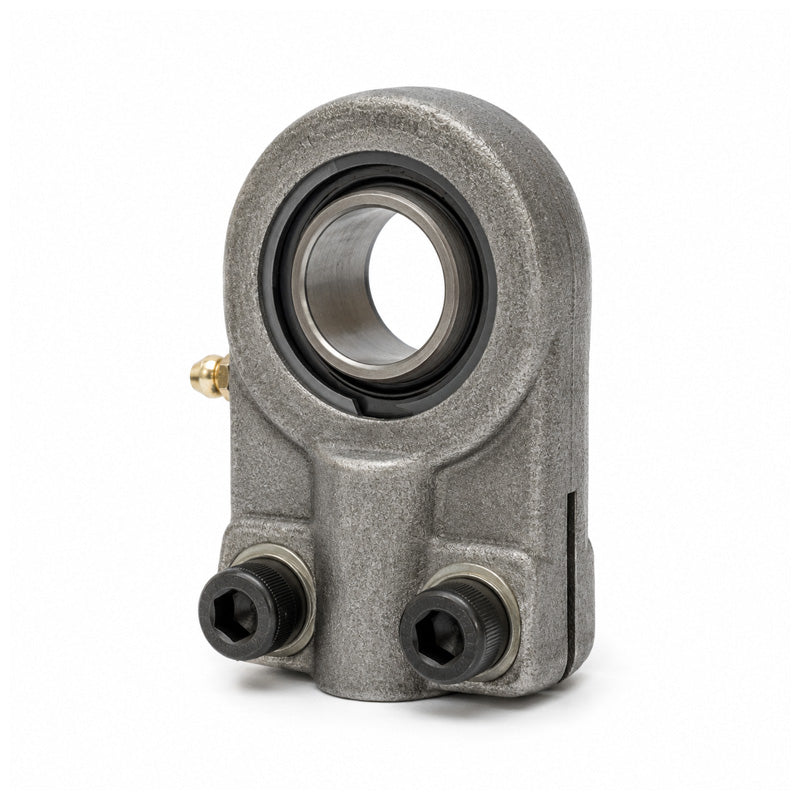

Durbal DGIHN-K80LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread

Name: Durbal DGIHN-K80LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread
Brand: Durbal
SKU: DGIHN-K80LO-DURB
Price: 616.22 USD
Availability: InStock

$616.22 ex VAT

Sale Sold out

Equivalent to: GIHNK80LO SIQG80ES

In stock

Price Break

10+ $412.76

19+ $389.58

29+ $384.94

39+ $380.30

49+ $375.66

74+ $371.02

99+ $347.84

199+ $343.20

249+ $338.56

499+ $333.92

999+ $324.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M64x3
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 80mm

Technical

Thread Direction	Right
d	80mm
d1	91mm
d2	168mm
d4	90mm
d5	148mm
dk	105mm
G (Thread)	M64x3mm
B	80mm
C1	66mm
C2	48mm
l3	86mm
l4	270mm
l7	78mm
h1	180mm
tilt angle α	4 deg
weight	14.5kg
basic load rating dyn C	320 kN
basic load rating stat Co	556 kN
radial clearance CN	8-142 µm
