• Durbal DGIHO-K20DO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M14x1.5 Thread - Allow 2-3 Days
1 1

SKU: DGIHO-K20DO-DURB

Durbal DGIHO-K20DO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M14x1.5 Thread - Allow 2-3 Days

Durbal DGIHO-K20DO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M14x1.5 Thread - Allow 2-3 Days
$41.24 ex VAT
$41.24 ex VAT
Sale Sold out

Equivalent to: GIHOK20DO SIJ20ES

In stock

Price Break
10+ $30.72
19+ $29.48
29+ $28.86
39+ $27.93
49+ $27.31
74+ $25.75
99+ $21.72
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

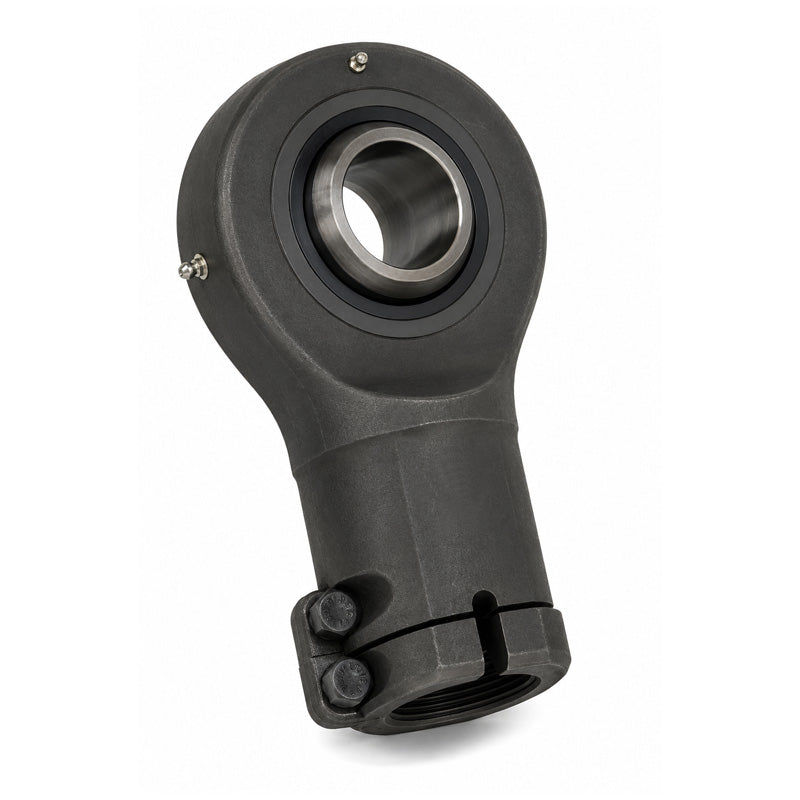

DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.

Brand / Quality:
Durbal - High Quality
Thread Size:
M14x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
20mm

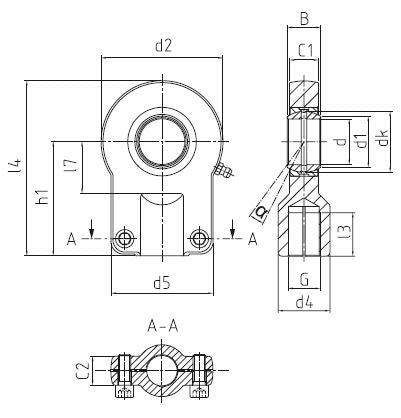

Technical
Thread Direction Right
d 20mm
d1 24.1mm
d2 55mm
d4 25mm
d5 55mm
G (Thread) M14x1.5mm
B 16mm
C1 13mm
C2 17mm
l3 19mm
l4 85.5mm
l7 25mm
h1 58mm
tilt angle α 9 deg
weight 0.43kg
basic load rating dyn C 24 kN
basic load rating stat Co 34 kN
radial clearance CN 8-82 µm
