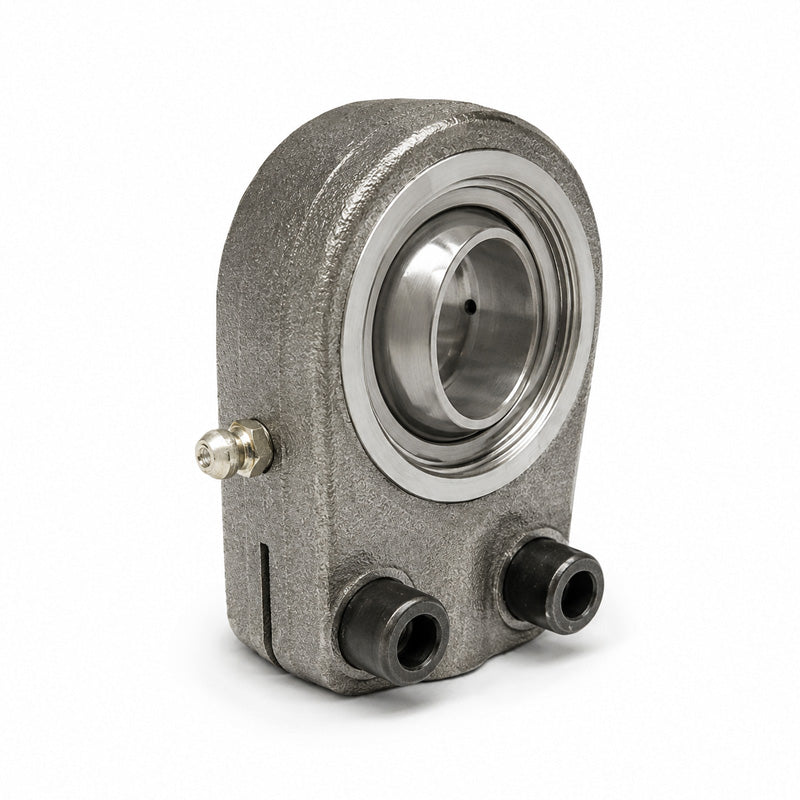

Durbal DGIHR-K25DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread

Name: Durbal DGIHR-K25DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M16x1.5 Thread
Brand: Durbal
SKU: DGIHR-K25DO-DURB
Price: 38.11 USD
Availability: InStock

$38.11 ex VAT

Sale Sold out

Equivalent to: GIHRK25DO SIR25ES

In stock

Price Break

10+ $25.53

19+ $24.09

29+ $23.80

39+ $23.52

49+ $23.23

74+ $22.94

99+ $21.51

199+ $21.22

249+ $20.94

499+ $20.65

999+ $20.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M16x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 25mm

Technical

Thread Direction	Right
d	25mm
d1	29.3mm
d2	56mm
d4	25mm
d5	46mm
dk	35.5mm
G (Thread)	M16x1.5mm
B	20mm
C1	23mm
l3	17mm
l7	28mm
l4	80
h1	50mm
tilt angle α	7 deg
weight	0.48kg
basic load rating dyn C	23.8 kN
basic load rating stat Co	57.6 kN
radial clearance CN	8-100 µm
