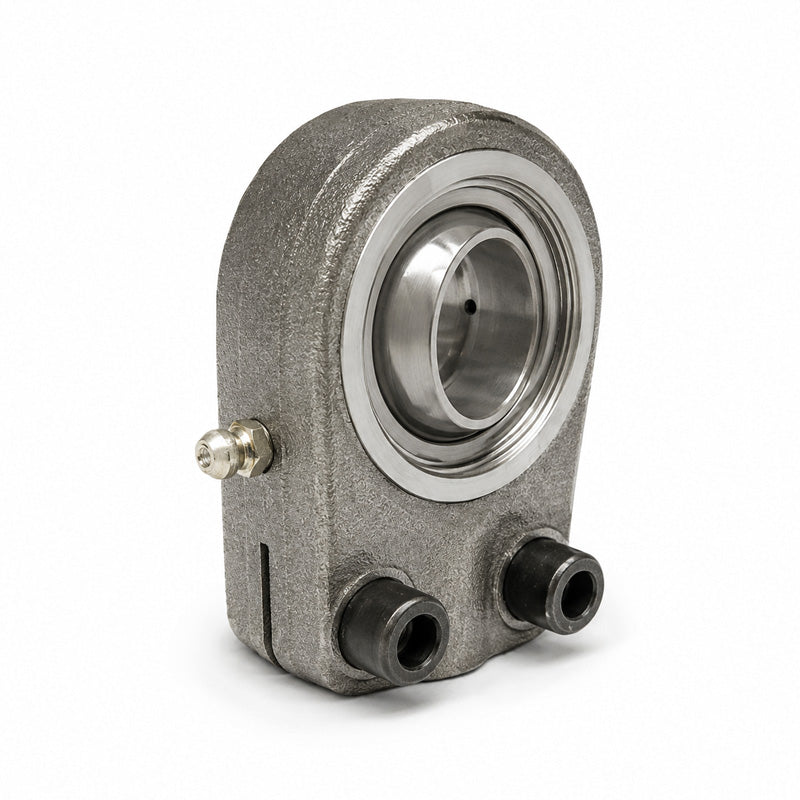

Durbal DGIHR-K30DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M22x1.5 Thread

Name: Durbal DGIHR-K30DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M22x1.5 Thread
Brand: Durbal
SKU: DGIHR-K30DO-DURB
Price: 44.56 USD
Availability: InStock

$44.56 ex VAT

Sale Sold out

Equivalent to: GIHRK30DO SIR30ES

In stock

Price Break

10+ $29.85

19+ $28.17

29+ $27.84

39+ $27.50

49+ $27.17

74+ $26.83

99+ $25.16

199+ $24.82

249+ $24.48

499+ $24.15

999+ $23.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M22x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 30mm

Technical

Thread Direction	Right
d	30mm
d1	34.2mm
d2	64mm
d4	32mm
d5	50mm
dk	40.7mm
G (Thread)	M22x1.5mm
B	22mm
C1	28mm
l3	23mm
l7	30mm
l4	94
h1	60mm
tilt angle α	6 deg
weight	0.74kg
basic load rating dyn C	38.4 kN
basic load rating stat Co	84.8 kN
radial clearance CN	8-100 µm
