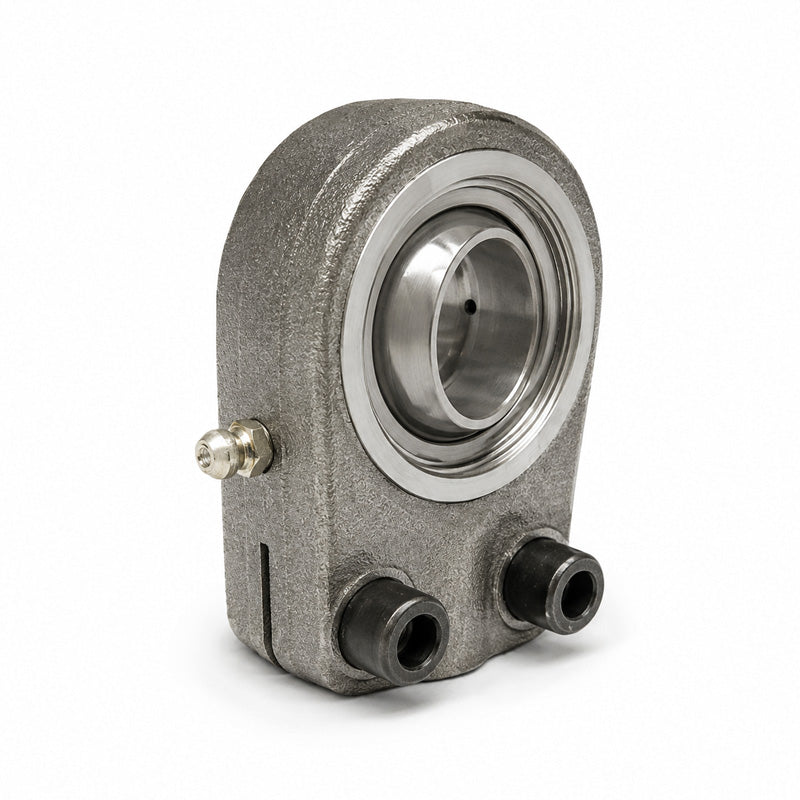

Durbal DGIHR-K35DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M28x1.5 Thread

Name: Durbal DGIHR-K35DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M28x1.5 Thread
Brand: Durbal
SKU: DGIHR-K35DO-DURB
Price: 100.53 USD
Availability: InStock

$100.53 ex VAT

Sale Sold out

Equivalent to: GIHRK35DO SIR35ES

In stock

Price Break

10+ $67.34

19+ $63.55

29+ $62.80

39+ $62.04

49+ $61.28

74+ $60.53

99+ $56.75

199+ $55.99

249+ $55.23

499+ $54.48

999+ $52.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M28x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 35mm

Technical

Thread Direction	Right
d	35mm
d1	39.7mm
d2	78mm
d4	40mm
d5	66mm
dk	47mm
G (Thread)	M28x1.5mm
B	25mm
C1	30mm
l3	29mm
l7	38mm
l4	112
h1	70mm
tilt angle α	6 deg
weight	1.2kg
basic load rating dyn C	64 kN
basic load rating stat Co	122.4 kN
radial clearance CN	8-100 µm
