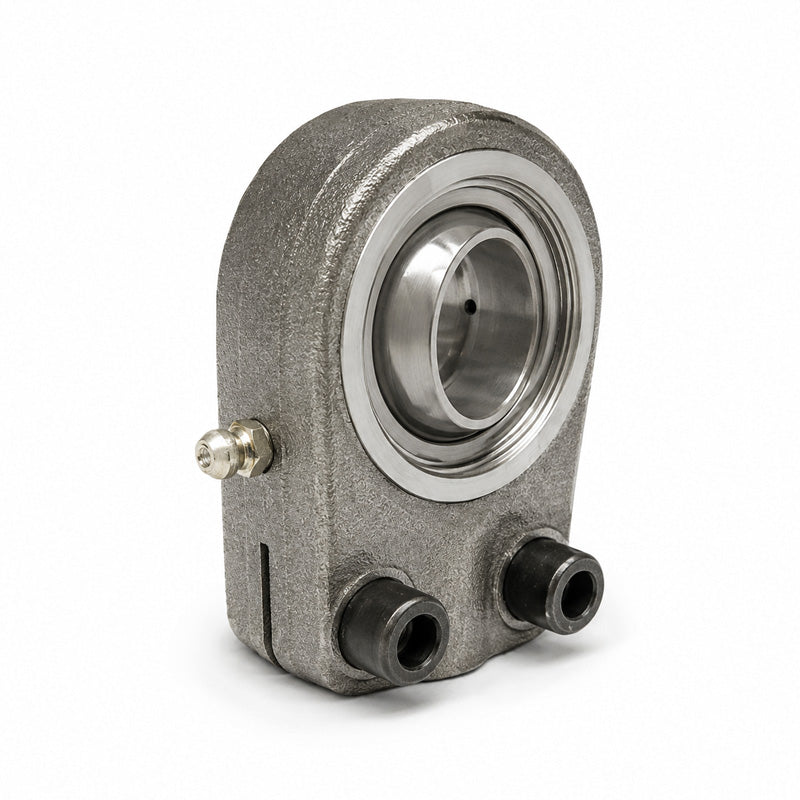

Durbal DGIHR-K40DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M35x1.5 Thread

Name: Durbal DGIHR-K40DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M35x1.5 Thread
Brand: Durbal
SKU: DGIHR-K40DO-DURB
Price: 79.81 USD
Availability: InStock

$79.81 ex VAT

Sale Sold out

Equivalent to: GIHRK40DO SIR40ES

In stock

Price Break

10+ $53.46

19+ $50.46

29+ $49.86

39+ $49.26

49+ $48.66

74+ $48.06

99+ $45.05

199+ $44.45

249+ $43.85

499+ $43.25

999+ $42.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M35x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 40mm

Technical

Thread Direction	Right
d	40mm
d1	45mm
d2	94mm
d4	49mm
d5	76mm
dk	53mm
G (Thread)	M35x1.5mm
B	28mm
C1	35mm
l3	36mm
l7	45mm
l4	135
h1	85mm
tilt angle α	7 deg
weight	2kg
basic load rating dyn C	80 kN
basic load rating stat Co	200 kN
radial clearance CN	8-120 µm
