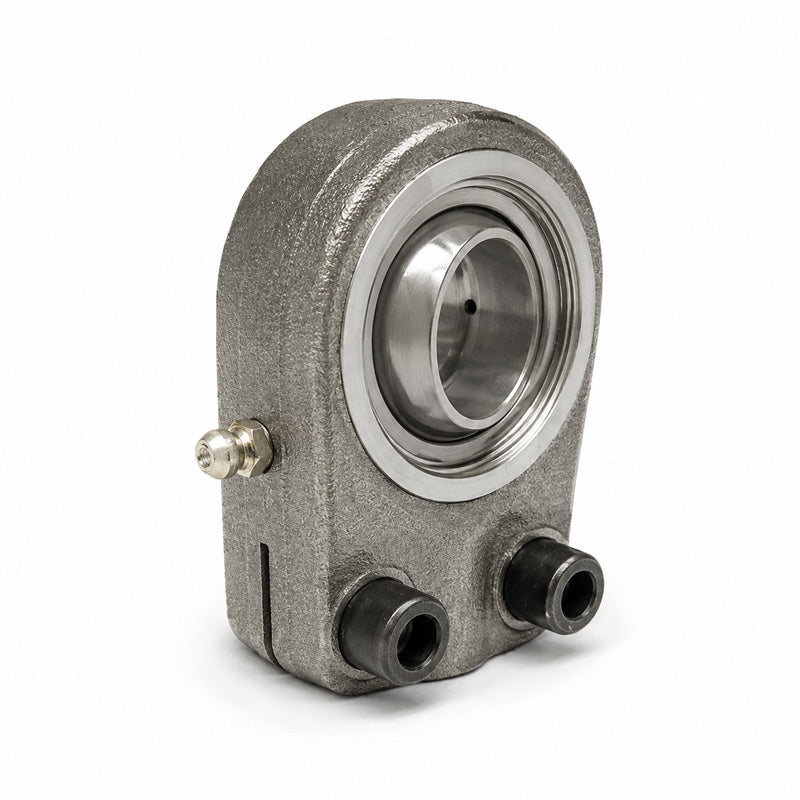

Durbal DGIHR-K50DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M45x1.5 Thread

Name: Durbal DGIHR-K50DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M45x1.5 Thread
Brand: Durbal
SKU: DGIHR-K50DO-DURB
Price: 109.05 USD
Availability: InStock

$109.05 ex VAT

Sale Sold out

Equivalent to: GIHRK50DO SIR50ES

In stock

Price Break

10+ $73.04

19+ $68.94

29+ $68.12

39+ $67.30

49+ $66.48

74+ $65.66

99+ $61.55

199+ $60.73

249+ $59.91

499+ $59.09

999+ $57.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M45x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 50mm

Technical

Thread Direction	Right
d	50mm
d1	55.9mm
d2	116mm
d4	61mm
d5	90mm
dk	60mm
G (Thread)	M45x1.5mm
B	35mm
C1	40mm
l3	46mm
l7	55mm
l4	168
h1	105mm
tilt angle α	6 deg
weight	3.8kg
basic load rating dyn C	124.8 kN
basic load rating stat Co	292 kN
radial clearance CN	8-120 µm
