SKU: DGIHR-K80DO-DURB

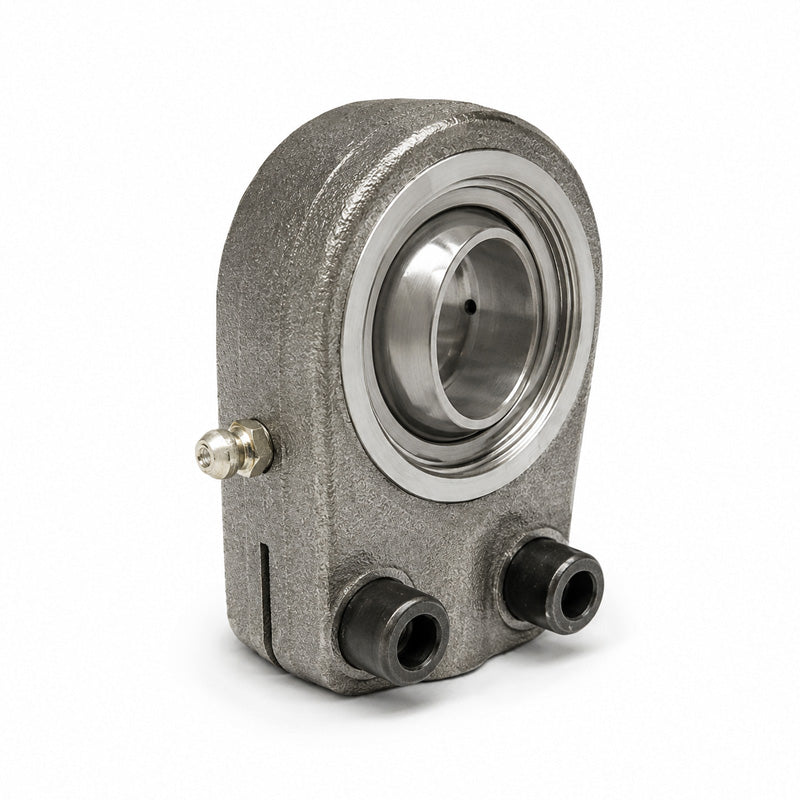

Durbal DGIHR-K80DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M80x2 Thread

Name: Durbal DGIHR-K80DO Maintenance Required Right Hand Hydraulic Rod End with Slot and Clamping Arrangement M80x2 Thread
Brand: Durbal
SKU: DGIHR-K80DO-DURB
Price: 297.55 USD
Availability: InStock

$297.55 ex VAT

Sale Sold out

Equivalent to: GIHRK80DO SIR80ES

In stock

Price Break

10+ $199.31

19+ $188.11

29+ $185.87

39+ $183.63

49+ $181.39

74+ $179.15

99+ $167.96

199+ $165.72

249+ $163.48

499+ $161.24

999+ $156.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Durbal - High Quality
Thread Size:: M80x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 80mm

Technical

Thread Direction	Right
d	80mm
d1	80.4mm
d2	176mm
d4	105mm
d5	160mm
dk	92mm
G (Thread)	M80x2mm
B	55mm
C1	60mm
l3	81mm
l7	80mm
l4	265
h1	170mm
tilt angle α	6 deg
weight	12kg
basic load rating dyn C	320 kN
basic load rating stat Co	536 kN
radial clearance CN	8-142 µm
