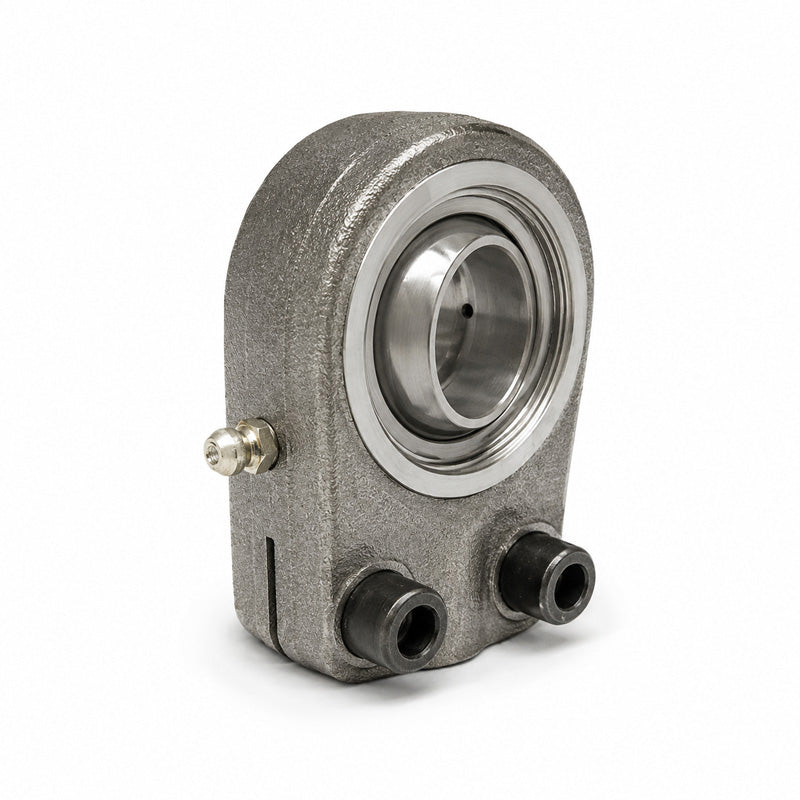

Durbal DGIHR110DO Maintenance Required Right Hand Hydraulic Rod End M120x3 Thread

DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing: Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads and for minimum linkage distances with maximum stroke utilisation. All rod ends can be greased subsequently by means of a conical grease nipple. Hydraulic rod ends are fixed as standard with maintenance required DGE_ES radial-spherical-plain bearings and fixed with retaining rings. Temperature range -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M120x3

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

110mm
