SKU: DGK120SK-DURB

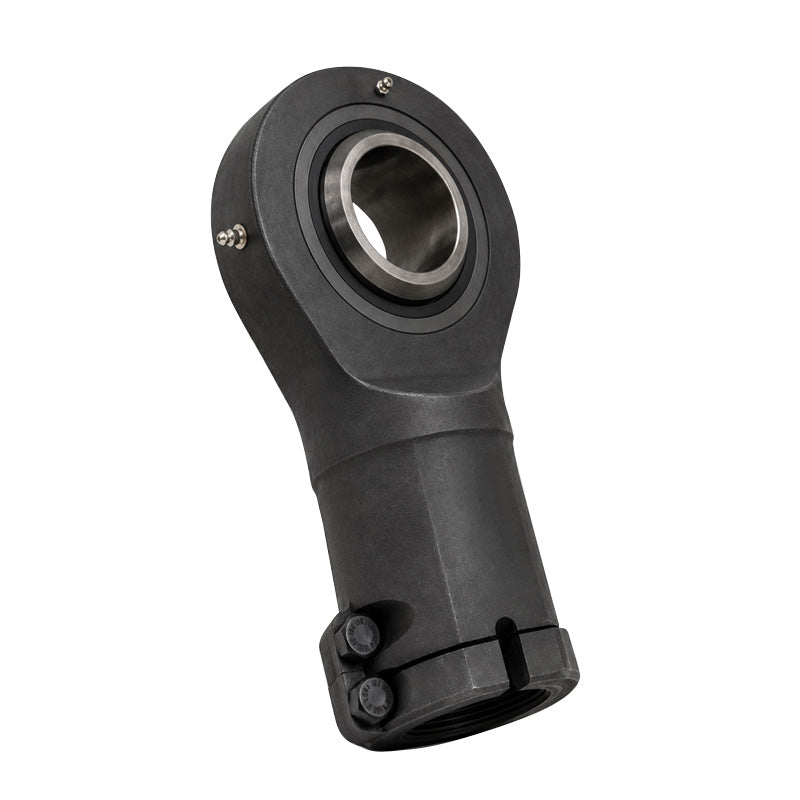

Durbal DGK120SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M150x4 Thread
Durbal DGK120SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M150x4 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M150x4
- Thread M / F:
- Female
- Inside Diameter:
- 100mm
Technical
Technical
| d | 120mm |
|---|---|
| d1 | 135.5mm |
| d2 | 340mm |
| d4 | 210mm |
| d5 | 240mm |
| dk | 160mm |
| G (Thread) | M150x4mm |
| B | 85mm |
| C1 | 85mm |
| C2 | 84mm |
| l3 | 190mm |
| l4 | 540mm |
| l7 | 140mm |
| h1 | 360mm |
| tilt angle α | 6 deg |
| weight | 75kg |
| basic load rating dyn C | 760 kN |
| basic load rating stat Co | 2376 kN |
| radial clearance CN | 8-165 µm |
