Durbal DGK20DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin

SKU: DGK20DO-DURB

Durbal DGK20DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin

$23.18 ex VAT
$23.18
ex VAT
Equivalent to: GK20DO SC20ES
Not in stock

Quantity Price Breaks

10 $20.63
19 $19.47
29 $19.24
39 $19.01
49 $18.78
74 $18.54
99 $17.39
199 $17.15
249 $16.92
499 $16.69
999 $16.23
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Durbal DGK20DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
SKU: DGK20DO-DURB

Durbal DGK20DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin

$23.18 ex VAT
$23.18
ex VAT

Description

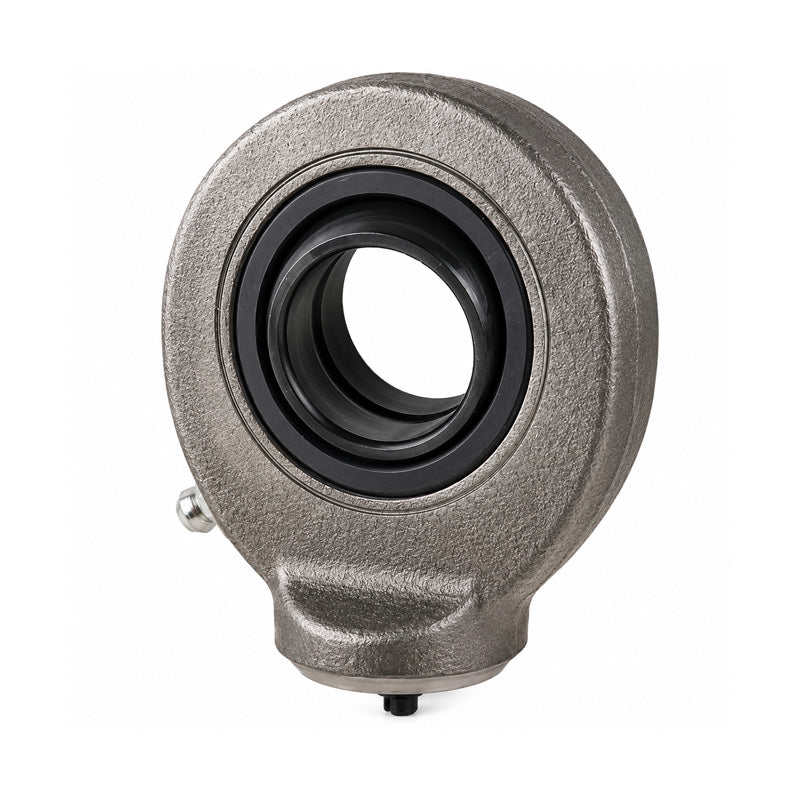

DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-plain Bearing (Round Welding Slope and Dowel Pin): Threaded female hydraulic rod end consisting of a forged, weldable steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball (Outer ring has a split from size 15) . Used for heavy static or changing loads, shock loads. Suitable for the fixing of piston rod ends and hydraulic cylinder bases. Rod ends from size 25 can be greased subsequently by means of a conical grease nipple. Hydraulic rod ends are fixed as standard with maintenance required DGE_E (size 10, 12) and DGE_ES (size 15-80) radial-spherical-plain bearings; with round welding stud and dowel pin. Temperature range -40 deg C to +200 deg C.
