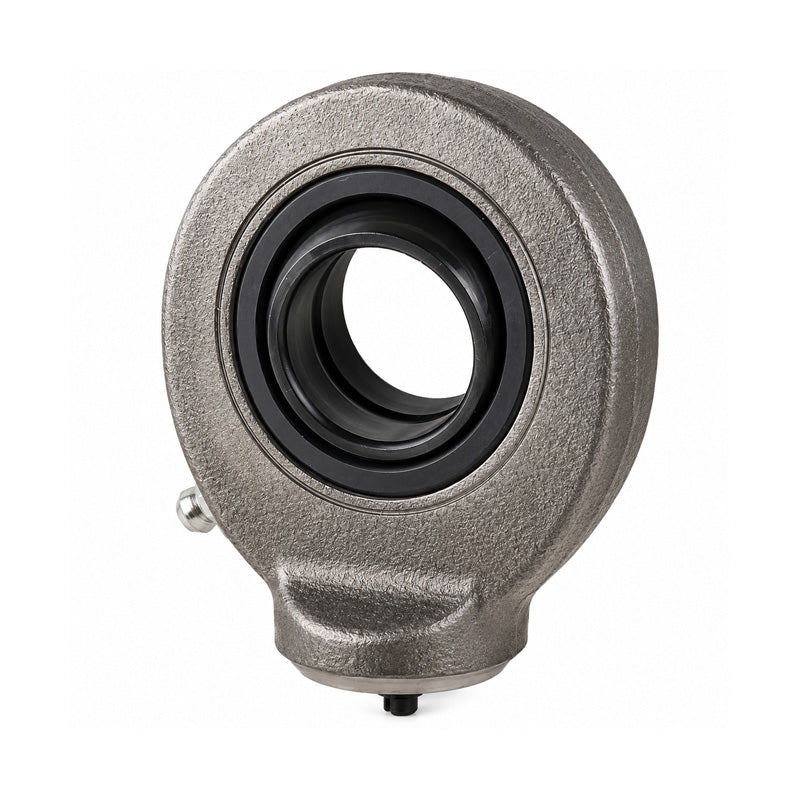

• Durbal DGK25DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
  • Durbal
1 2

SKU: DGK25DO-DURB

Durbal DGK25DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin

Durbal DGK25DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
$26.97 ex VAT
$26.97 ex VAT
Sale Sold out

Equivalent to: GK25DO SC25ES

In stock

Price Break
10+ $18.07
19+ $17.05
29+ $16.85
39+ $16.65
49+ $16.44
74+ $16.24
99+ $15.23
199+ $15.02
249+ $14.82
499+ $14.62
999+ $14.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread M / F:
Female
Inside Diameter:
25mm
Technical
d 25mm
d1 29.3mm
d2 64mm
d5 33.5mm
d6 4mm
dk 35.5mm
B 20mm
C1 17mm
l6 77mm
l7 33mm
l8 6mm
h2 45mm
Tilt angle α 7 deg
Weight 0.43kg
Basic Load Rating dyn C 47 kN
Basic Load Rating stat Co 57.6 kN
Radial Clearance CN 8-100 µm
