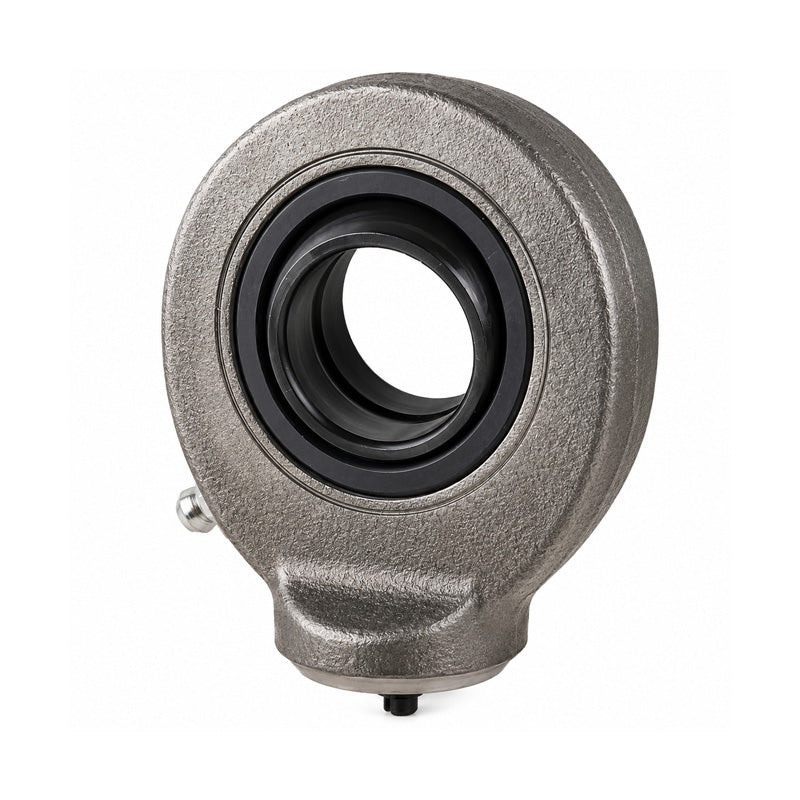

• Durbal DGK30DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
  • Durbal
1 2

SKU: DGK30DO-DURB

Durbal DGK30DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin

Durbal DGK30DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
$37.75 ex VAT
$37.75 ex VAT
Sale Sold out

Equivalent to: GK30DO SC30ES

In stock

Price Break
10+ $25.28
19+ $23.86
29+ $23.58
39+ $23.30
49+ $23.01
74+ $22.73
99+ $21.31
199+ $21.02
249+ $20.74
499+ $20.46
999+ $19.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread M / F:
Female
Inside Diameter:
30mm
Technical
d 30mm
d1 34.2mm
d2 73mm
d5 40mm
d6 4mm
dk 40.7mm
B 22mm
C1 19mm
l6 87.5mm
l7 37.5mm
l8 6mm
h2 51mm
Tilt angle α 6 deg
Weight 0.64kg
Basic Load Rating dyn C 61 kN
Basic Load Rating stat Co 76 kN
Radial Clearance CN 8-100 µm
