• Durbal DGK35DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
  • Durbal
1 2

SKU: DGK35DO-DURB

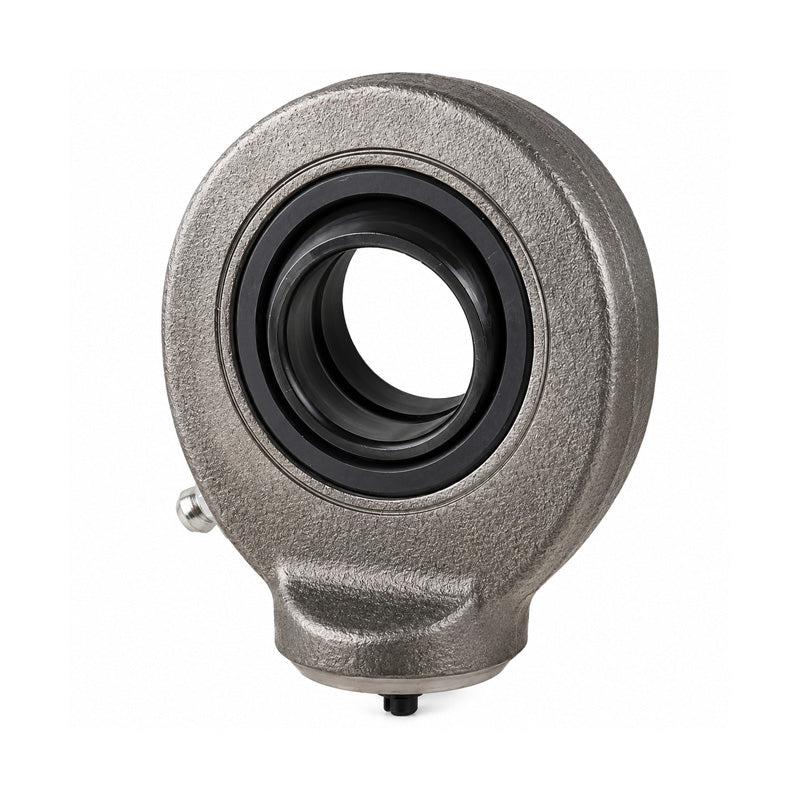

Durbal DGK35DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin

Durbal DGK35DO Maintenance Required Hydraulic Rod End with Weld Relief and Dowel Pin
$75.71 ex VAT
$75.71 ex VAT
Sale Sold out

Equivalent to: GK35DO SC35ES

In stock

Price Break
10+ $50.71
19+ $47.86
29+ $47.29
39+ $46.72
49+ $46.15
74+ $45.58
99+ $42.74
199+ $42.17
249+ $41.60
499+ $41.03
999+ $39.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Durbal - High Quality
Thread M / F:
Female
Inside Diameter:
35mm
Technical
d 35mm
d1 39.7mm
d2 82mm
d5 47mm
d6 4mm
dk 47mm
B 25mm
C1 21mm
l6 102mm
l7 43mm
l8 6mm
h2 61mm
Tilt angle α 6 deg
Weight 0.96kg
Basic Load Rating dyn C 79 kN
Basic Load Rating stat Co 100 kN
Radial Clearance CN 8-100 µm
Reviews
View full details
